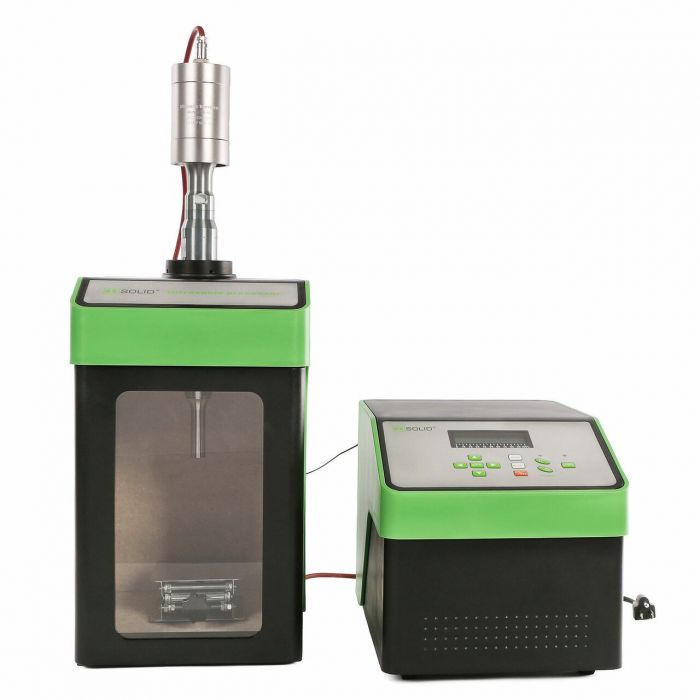

300W Ultrasonic Homogenizer, 5 to 200ml Ultrasonicator Cell Disruptor
$1,039.99
In stock
SKU
JFHLUH00013
Ultrasonic homogenizer designed for laboratory use, suitable for mixing, emulsifying, homogenizing, disrupting cells, and reducing particle size in samples. Features include an LCD digital display, 99 hours total working time, variable output for pulsation, temperature indicator for preventing overheating, easy-to-use programming for optimal efficiency, automatic amplitude control, and a sound abating chamber to reduce cavitation noise. The duty ratio ranges from 0-100% depending on requirements.
Technical Parameters
- Sample Capacity:
- 500ul-10ml - Φ 2 mm EP tube, microcentrifuge tube, or small tube
- 500ul-50ml - Φ 3 mm
- 2ml-100ml - Φ 6 mm small tube (diameter < 10mm) or small beaker
- 5ml-200ml - Φ 8 mm small tube (diameter < 10mm)
- 5ml-200ml - Φ 10mm Beaker (or container based on sample capacity)
- 10ml-300ml - Φ 13 mm
- 20ml-500ml - Φ 16 mm
- 20ml-500ml - Φ 18 mm
- 50ml-2000ml - Φ 20 mm
- 50ml-3000ml - Φ 25 mm
- 50ml-3000ml - Φ 30 mm
Specifications
- Model: USS-HLUH00013
- Frequency Range: 20KHz
- Output Power: 300 W
- Total Working Timer: 1 sec to 99 hours
- Ultrasonic Output Impulse: 1 sec to 99 min on timer
- Duty Ratio: 0-100%
- Probe Diameter: 8 mm
- Sample Processing Volume: 5-200 ml
- Packing Size: 20” * 14” * 30”
- Gross Weight: 12 kg
- Power Supply: AC 110V, 60 Hz
Model Comparison
| Model | Output Power | Probe Diameter | Capacity |
|---|---|---|---|
| USS-HLUH00012 | 150 W | 6 mm | 2-100 ml |
| USS-HLUH00013 | 300 W | 8 mm | 5-200 ml |
| USS-HLUH00014 | 450 W | 13 mm | 10-300 ml |
| USS-HLUH00015 | 600 W | 16 mm | 1-500 ml |
| USS-HLUH00016 | 1200 W | 20 mm | 50-2000 ml |
| USS-HLUH00019 | 1800 W | 25 mm | 50-3000 ml |
Watch the introduction video for more details. You can refer to the instruction manual for guidance.
