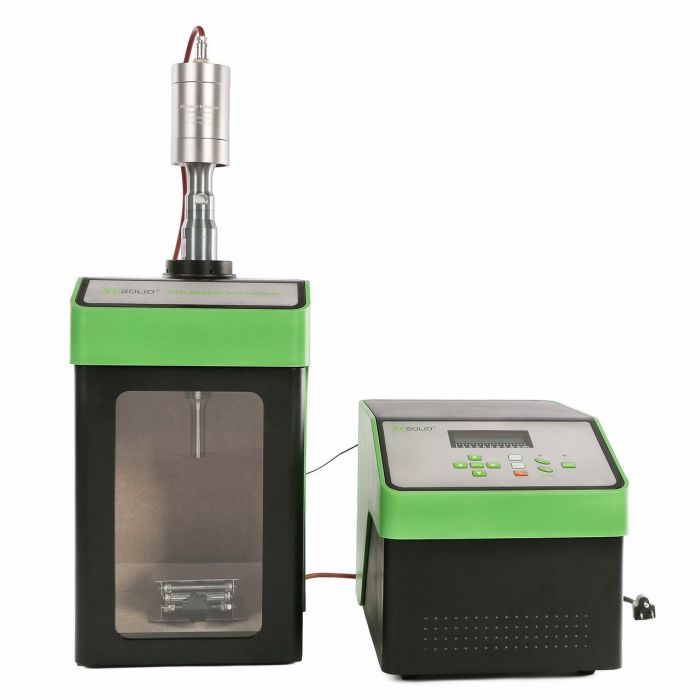

600W Ultrasonic Cell Disruptor, 20 to 500ml Ultrasonicator Homogenizer

Ultrasonic homogenizer designed for laboratory use for mixing, emulsifying, homogenizing, disrupting cells, and reducing particle size in samples. Features an LCD digital display, 99 hours total working time, variable output for pulsation, temperature indicator to prevent overheating, easy-to-use programming for optimal efficiency, automatic amplitude control, sound abating chamber to reduce cavitation noise, and duty ratio of 0-100% depending on needs.

Technical Parameters:

• Sample Capacity:
  • 500ul-10ml: Φ 2 mm probe recommended for EP tube, microcentrifuge tube, or small tube
  • 500ul-50ml: Φ 3 mm probe
  • 2ml-100ml: Φ 6 mm probe for small tubes or small beakers with diameter <10mm
  • 5ml-200ml: Φ 8 mm probe for small tubes with diameter <10mm
  • 5ml-200ml: Φ 10mm probe for beaker or container based on actual sample capacity
  • 10ml-300ml: Φ 13 mm probe
  • 20ml-500ml: Φ 16 mm probe
  • 20ml-500ml: Φ 18 mm probe
  • 50ml-2000ml: Φ 20 mm probe
  • 50ml-3000ml: Φ 25 mm probe
  • 50ml-3000ml: Φ 30 mm probe

Specifications:

• Model: USS-HLUH00015
• Frequency Range: 20KHz
• Output Power: 600 W
• Total Working Timer: 1 sec to 99 hours
• Ultrasonic Output Impulse: 1 sec to 99 min on timer
• Duty Ratio: 0-100%
• Probe Diameter: 16 mm
• Sample Processing Volume: 1-500 ml
• Gross Weight: 14 kg
• Power Supply: AC 110V, 60 Hz

Available Models:

Additional Resources:

• Introduction Video
• Instruction Manual
