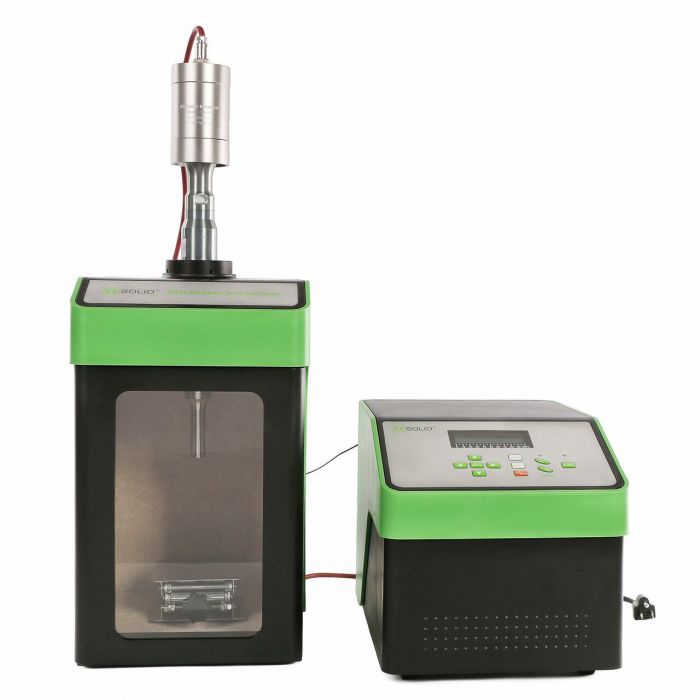

1200W Ultrasonic Homogenizer, 50 to 2000ml Ultrasonicator Cell Disruptor

Enhance your laboratory capabilities with this advanced ultrasonic homogenizer designed for mixing, emulsifying, homogenizing, cell disruption, and particle size reduction in samples. Featuring an LCD Digital display, it offers a total working time of 99 hours, variable output for pulsation, temperature indicator for overheating prevention, user-friendly programming for efficient operation, automatic amplitude control, and a sound abating chamber to minimize cavitation noise. The duty ratio can be adjusted from 0-100% according to specific requirements.

Technical Parameters:

• Sample Capacity:
  • Diameter of Probe: Φ 2 mm, Recommend Container: 500ul-10ml EP tube, microcentrifuge tube or small tube
  • Diameter of Probe: Φ 3 mm, Recommend Container: 500ul-50ml
  • Diameter of Probe: Φ 6 mm, Recommend Container: 2ml-100ml small tube, diameter <10mm; or small beaker
  • Diameter of Probe: Φ 8 mm, Recommend Container: 5ml-200ml small tube, diameter <10mm
  • Diameter of Probe: Φ 10mm, Recommend Container: 5ml-200ml Beaker (or you can choose container according to the actual sample capacity)
  • Diameter of Probe: Φ 13 mm, Recommend Container: 10ml-300ml
  • Diameter of Probe: Φ 16 mm, Recommend Container: 20ml-500ml
  • Diameter of Probe: Φ 18 mm, Recommend Container: 20ml-500ml
  • Diameter of Probe: Φ 20 mm, Recommend Container: 50ml-2000ml
  • Diameter of Probe: Φ 25 mm, Recommend Container: 50ml-3000ml
  • Diameter of Probe: Φ 30 mm, Recommend Container: 50ml-3000ml

Specifications:

• Frequency Range: 20KHz
• Output Power: 1200 W
• Total Working Timer: 1 sec to 99 hours
• Ultrasonic Output Impulse: 1 sec to 99 min on timer
• Duty Ratio: 0-100%
• Probe Diameter: 20 mm
• Sample Processing Volume: 50-2000 ml
• Packing Size: 20” * 14” * 30”
• Gross Weight: 15 kg
• Power Supply: AC 110V, 60 Hz

Explore the range of models with varying output power and probe diameters to cater to different sample processing volumes.
