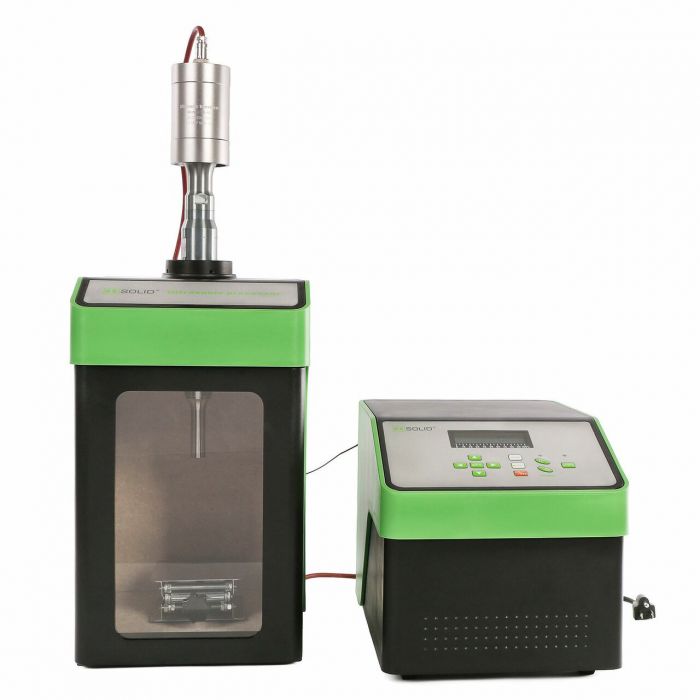

450W Ultrasonic Homogenizer, 10 to 300ml Ultrasonicator Cell Disruptor

Ultrasonic homogenizer designed for laboratory use, suitable for mixing, emulsifying, homogenizing, disrupting cells, and reducing particle size in samples. Features an LCD Digital display, 99 hours total working time, variable output for pulsation, temperature indicator to prevent overheating, easy-to-use programming for optimal efficiency, automatic amplitude control, and a sound abating chamber to reduce cavitation noise. The duty ratio ranges from 0% to 100%, depending on specific needs.

TECHNICAL PARAMETER

• Sample capacity:
  • 500ul-10ml: Φ 2 mm probe, recommended container EP tube, microcentrifuge tube, or small tube
  • 500ul-50ml: Φ 3 mm probe
  • 2ml-100ml: Φ 6 mm probe, suitable for small tubes with a diameter of < 10mm or small beakers
  • 5ml-200ml: Φ 8 mm probe, suitable for small tubes with a diameter of < 10mm
  • 5ml-200ml: Φ 10mm probe, suitable for beakers or containers according to the actual sample capacity
  • 10ml-300ml: Φ 13 mm probe
  • 20ml-500ml: Φ 16 mm probe
  • 20ml-500ml: Φ 18 mm probe
  • 50ml-2000ml: Φ 20 mm probe
  • 50ml-3000ml: Φ 25 mm probe
  • 50ml-3000ml: Φ 30 mm probe

Specifications

• Model: [Model Number]
• Frequency Range: 20KHz
• Output Power: [Power]
• Total Working Timer: 1 sec to 99 hours
• Ultrasonic Output Impulse: 1 sec to 99 min on timer
• Duty Ratio: 0-100%
• Probe Diameter: 13 mm
• Sample Processing Volume: 10-300 ml
• Packing Size: 20” * 14” * 30”
• Gross Weight: 13 kg
• Power Supply: AC 110V, 60 Hz

• Model [Model Number]
• Output Power: [Power]
• Probe Diameter: [Diameter]
• Capacity: [Capacity]

For more information, please refer to the instruction manual or watch the introduction video.
