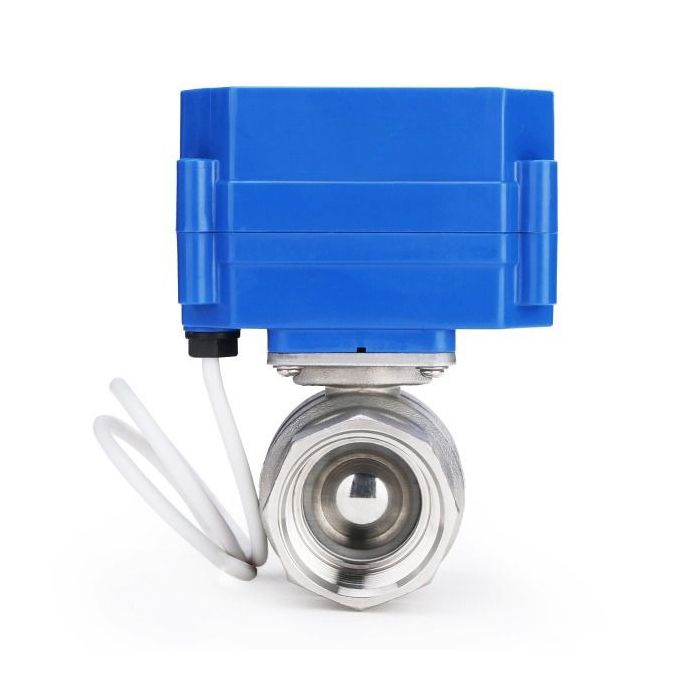

2" Stainless Steel Motorized Electric Ball Valve, Full Port, 9-24 V AC/DC, 2-Wire Auto Return
Motorized ball valves play a crucial role in various applications. This particular model operates with an opening and closing time of 3-5 seconds, effortlessly maintaining its new position with minimal energy consumption. This sets motorized ball valves apart from many solenoid valves, as most solenoid valves continuously draw energy in their new position, while motorized ball valves only use energy when transitioning between open and closed states. The 2-wire auto return feature of this model is ideal for situations where the valve needs to close in the event of a power outage. The valve can be powered to open and will require minimal energy once fully open. To close the valve, simply cut off power supply. This valve is user-friendly, allowing for operation with a basic on-off switch. When turned on, it will stay open, and when switched off (or power is lost), the valve will automatically close. Made of stainless steel, this ball valve is NSF certified, ensuring safe installation in drinking water pipelines.
Specifications:
- Valve Material: SS304
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
