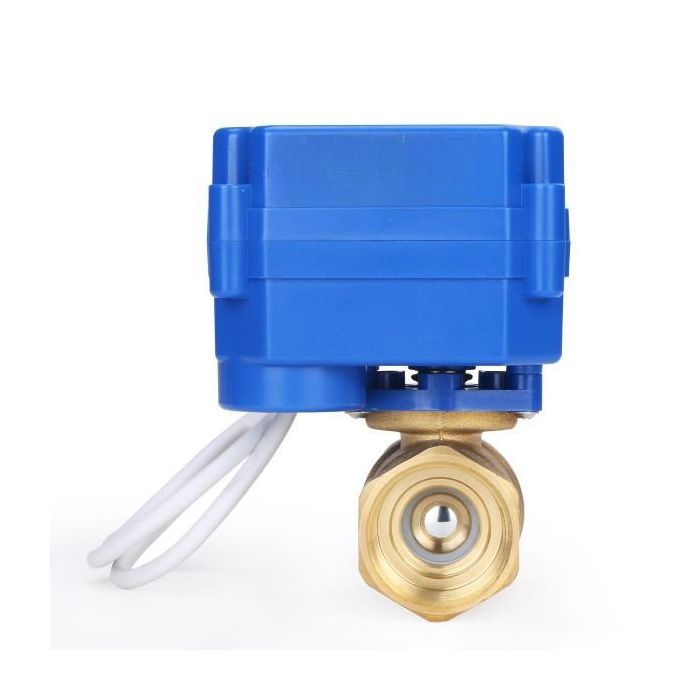

Motorized Ball Valve- 3/4" Brass Electrical Ball Valve with Standard Port, 9-24 V AC/DC, 2 Wire Auto Return
Motorized ball valves play a crucial role in various applications. This particular model is designed to open and close within 3-5 seconds, requiring minimal energy to maintain its position. A notable difference between motorized ball valves and solenoid valves is that while solenoid valves typically consume continuous energy when in a new position, motorized ball valves only use power during the transition from open to close or vice versa.
The 2-wire auto return feature of this model is ideal for scenarios where the valve must be closed in the event of a power outage. Users can energize the valve to open and keep it connected, utilizing minimal energy once fully opened. To close the valve, simply deactivate the power supply. Operating this valve is convenient as it can be controlled with a straightforward on-off switch. When switched on, it remains open; when turned off or when power is lost, the valve automatically closes.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2 Nm
- Max Medium Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -10°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
