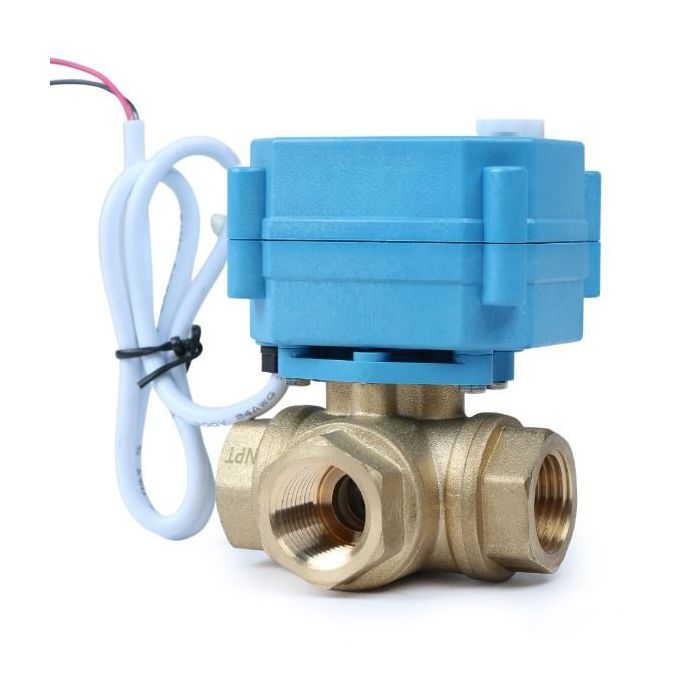

3/4" 3 Way Brass Motorized Ball Valve, AC110-230V, L Type, Standard Port, with Manual Function, IP67

Designed for user-friendly and durable performance, this high-quality three-way valve provides a range of voltage configurations, integrated limit switches, two-wire control, and a built-in capacitor return for optimized current and water conservation. With power connection, water flows from the left port, and without power, water flows from the right port. Moreover, users can manually adjust the flow direction using the hand-wheel for added flexibility.

Specifications:

• Model: MSV10016
• Valve Body Material: Brass
• Port Size: 3/4''
• Voltage: AC110-230V
• Max. Torque: 3 N m
• Open/Close Time: ~ 5 seconds
• Max. Power: 5 W
• Max. Pressure: 1.0 MPa
• Flow Medium Temp. Range: 0 to 90 ℃
• Ambient Temp. Range: -15 ℃ to 50℃
• Life Time: ≥70000 times
• Actuator Material: PPO
• O-ring: FKM
• Sealing: PTFE
• Manual Override: Yes
• On/Off Indicator: Yes
• IP Rating: IP 67
• Bore Type: Standard Port
• Item Dimension: 3.94*2.95*3.07 in
• Item Weight: 1.68 lb
