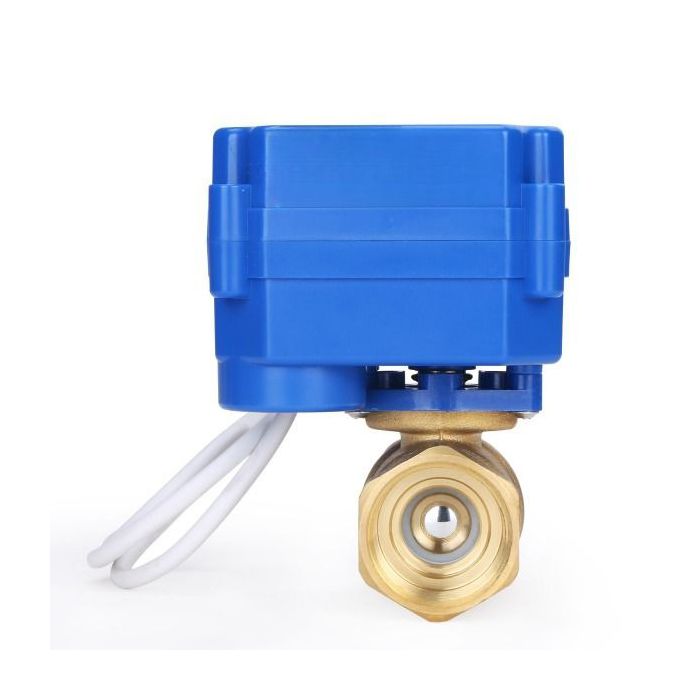

Motorized Ball Valve- 3/4" Brass Electrical Ball Valve with Standard Port, 9-24 V AC/DC, 2 Wire Auto Return, Normally Open

$16.37
In stock
SKU
JFMSV00075

Motorized ball valves are essential equipment for various applications. This particular model boasts an impressive opening and closing time of 3-5 seconds, and remains in its new position with minimal energy consumption. This sets it apart from many solenoid valves, as most solenoid valves require continuous energy while in a new position, unlike motorized ball valves that only consume energy during the transition from open to close, or vice versa.

The 2 wire auto return feature of this model is ideal for scenarios where the valve must be opened in case of a power outage. When energized to close, the valve can be left connected with minimal energy usage once fully closed. To open, simply deactivate the power supply. This valve is user-friendly as it can be operated with a straightforward on-off switch. When switched on, it remains closed, and in the event the power is lost, the valve automatically opens.

Specifications:

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 5 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return (New Type with Indicator available as JFMBV00001)
