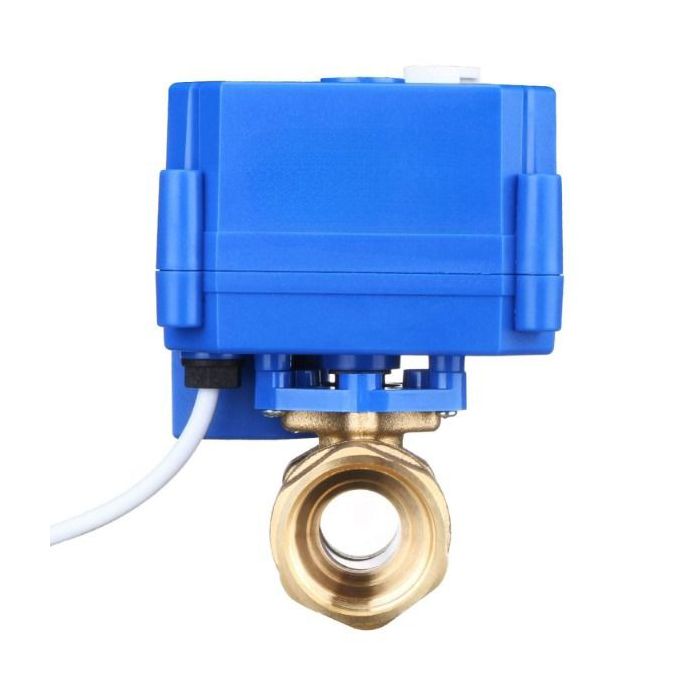

Electric Brass Ball Valve - 3/4" Motorized Valve with Manual Control, Standard Port, 9-24V AC/DC Power Supply and 3-Wire Configuration
Versatile Power Options
The Motorized Electrical Ball Valve operates on a wide voltage range of 9V-24V AC/DC, making it adaptable to various power sources and ensuring reliable performance in diverse settings.
Efficient Operation
With a maximum power consumption of just 2W and a maximum torque of 2.5 N m, this valve offers a balance of power efficiency and performance. It's designed to operate smoothly and reliably, even in demanding conditions.
Quick Response Time
The valve boasts an impressive open/close time of less than 8 seconds, ensuring rapid response and efficient control in your fluid systems. This feature is particularly beneficial in applications where quick adjustments are crucial.
Robust and Durable
With an IP65 rating, the valve is dust-tight and protected against water jets, ensuring its durability and reliability in various environmental conditions. It can withstand a maximum pressure of 1.0 MPa, making it suitable for high-pressure applications.
Wide Temperature Range
The valve can handle a flow medium temperature range of 0°C to 90°C (194°F), and an ambient temperature range of -5°C to 40°C (-41°F to 104°F). This makes it versatile for use in a variety of environments and applications, from heating systems to industrial processes.
Position Indicator and Manual Function
The Position Indicator on the top of actuator can help you see the on / off state of the valve. The valve also comes with manual function, enabling manual adjustment when necessary, such as when the valve is locked or in case of power failure.
Wiring Instructions
In direct current (DC) situations, connect the wires as follows:
- Red wire to positive terminal
- Blue wire to negative terminal
- Yellow wire controls the opening and closing of the valve
In alternating current (AC) situations, connect the wires as follows:
- Red and blue wires to any two poles of the power source
- Yellow wire controls valve opening and closing
Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Specifications
- Valve Material: Brass
- Ball Seal: PTFE
- Close/Open Time: <8 Seconds
- Working Voltage: 9~24V AC/DC
- Max Power: 2 W
- Max Torque: 2.5 N m
- Max Pressure: 1.0 MPa
- Temperature range for flow medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000-100,000 Cycles
- Bore Type: Standard Port
- Thread Type: NPT
