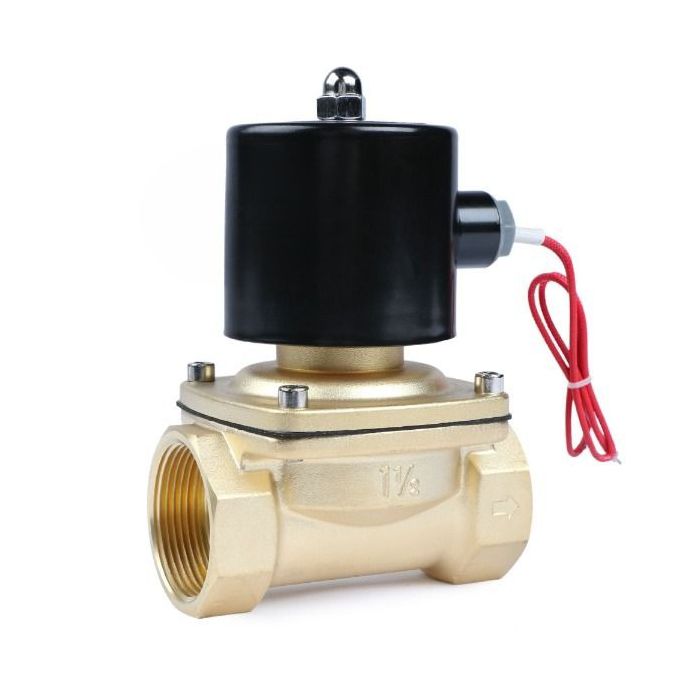

Brass Electric Solenoid Valve - 1-1/2" 110V AC, Normally Closed with VITON Seal
An electric solenoid valve with normally closed (N/C) operation is designed for various applications. Constructed with a premium brass body, this valve features two-way inlet and outlet ports with 1-1/2" female threaded (NPT) connections and a heat and oil resistant Viton gasket. It is suitable for use with hot or cold water, gas, air, low viscosity fluids (< 20 cst), as well as oils and hydrocarbons like gasoline, kerosene, or diesel fuel.
The solenoid valves come with an IP65 rating, making them resistant to water spray. For outdoor installations, it is recommended to enclose the valves in protective housing. Please note that they are not suitable for underwater use.
Customers choose this general purpose valve for a variety of applications including DIY projects, moderate temperature uses, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, and regulating propane gas flow.
Specifications:
- Pipe Size: 1-1/2" (1.5")
- Flow Aperture: 40 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 27.5 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 40 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 40 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: This solenoid valve is not intended for continuous operation (not a 100% duty cycle). When energized, the valve will generate heat, with the coil reaching a maximum temperature of approximately 176°F (80°C) in compliance with national standards. Continuous energization for over 8 hours may cause the coil to burn.
WARNING: This product may expose you to certain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Refer to the Instruction Manual for detailed usage guidelines.
