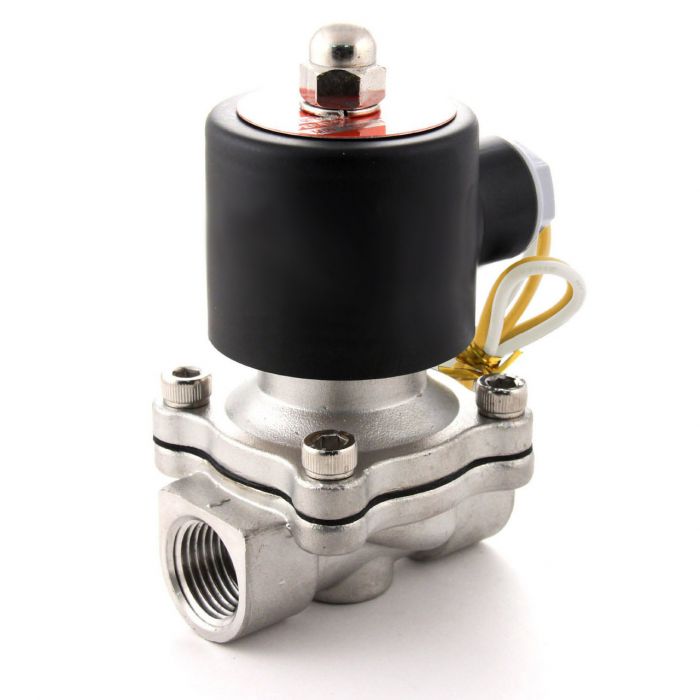

Electric Stainless Steel Solenoid Valve - 1/2" 110V AC, Normally Closed with VITON SEAL

Electric solenoid valve with a stainless steel body and one-half inch female threaded connections. Suitable for a variety of fluids and gases, such as hot or cold water, air, oils, and hydrocarbons. Can handle harsh chemicals and moderate temperature applications. Ideal for DIY projects, irrigation systems, and home brewing.

Specifications:

• Pipe Size: 1/2"
• Flow Aperture: 16 mm
• Body Material: Stainless Steel
• Gasket / Diaphragm / Seal: VITON
• Operation Type: Semi-direct Lift Valve
• Operation Mode: Normally Closed
• Voltage: AC 110V ± 10%
• Power rating: 21 VA
• Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
• Operational pressure range:
  • Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
  • Oil: 0-5 Bar (0 to 72 PSI)
• Flow capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
• Flow value: 4.8 Cv
• Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
• Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

Additional Note: Not designed for continuous operation. Maximum coil temperature should not exceed 176°F (80℃) to prevent burning.

For a version with a brass body, see Item #2-00009.
