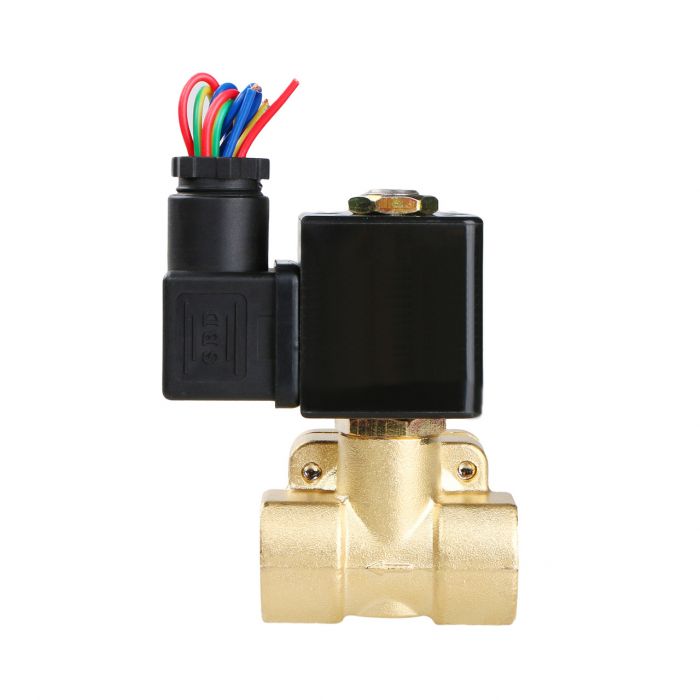

Electric Solenoid Valve- 1/2" 110V AC Brass Body Normally Closed, Pilot Type, VITON SEAL

An electric solenoid valve with normally closed (N/C) operation is crafted with a durable brass body, 1/2" female threaded (NPT) connections, and a heat and oil resistant Viton gasket. This valve is suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids (<20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. It has an IP65 rating, making it able to withstand water spray, but it is recommended to enclose the valve in a protective housing if permanently installed outdoors. It is not suitable for underwater use.

Customers have chosen this versatile valve for various purposes such as DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or for regulating propane gas flow. The specifications of this valve include a 1/2" pipe size, a 12 mm flow aperture, brass body material, VITON gasket, pilot operation type, normally closed operation mode, AC 110V voltage, 10 VA power rating, and suitability for media such as air, water, oil, diesel fuel, and kerosene.

It has an operational pressure range of 0.1-16 Bar (0 to 232 PSI) and a flow capacity of 4.8 gallons per minute (GPM) with water at 60 oF and a pressure drop of 1 PSI. The valve is capable of handling a flow value of 4.8 Cv and has a temperature range from -10 degrees Celsius to 120 degrees Celsius. Please note that this solenoid valve is not designed for continuous operation and may overheat if energized continuously for more than 8 hours due to compliance with national standards.
