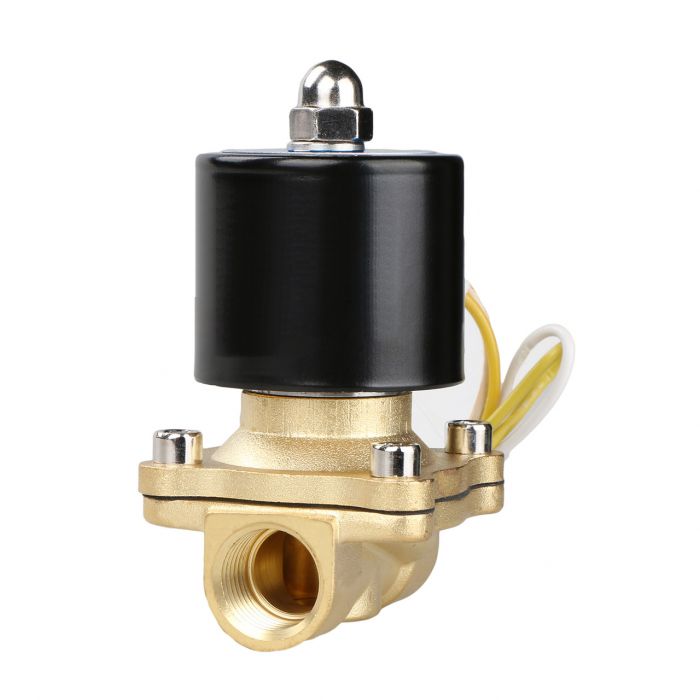

Electric Solenoid Valve - 1/2" 110V AC Brass Body Normally Closed, VITON SEAL
An electric solenoid valve with normally closed (N/C) operation is made of high-quality brass material, featuring two-way inlet and outlet ports with half-inch female threaded (NPT) connections. Equipped with a heat and oil resistant Viton gasket, this valve is suitable for various applications such as hot or cold water, gases, air, low viscosity fluids, oils, and hydrocarbons including gasoline, kerosene, and diesel fuel.
The solenoid valves are IP65 rated, indicating their ability to withstand water spray. It is recommended to enclose them in protective housing when permanently installed outdoors, as they are not suitable for underwater usage. Customers often choose this valve for do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or home brewing.
Specifications:
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60 °F with a pressure drop of 1 PSI
- Flow value: 4.8 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
Available with a stainless steel body as Item #XXXXX-XXXXX.
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). While energized, the solenoid valve will heat up under normal conditions, with the coil reaching a maximum temperature of about 176°F (80℃). If energized continuously for more than 8 hours, the coil may burn.
WARNING: This product may expose you to chemicals including lead, a substance known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
