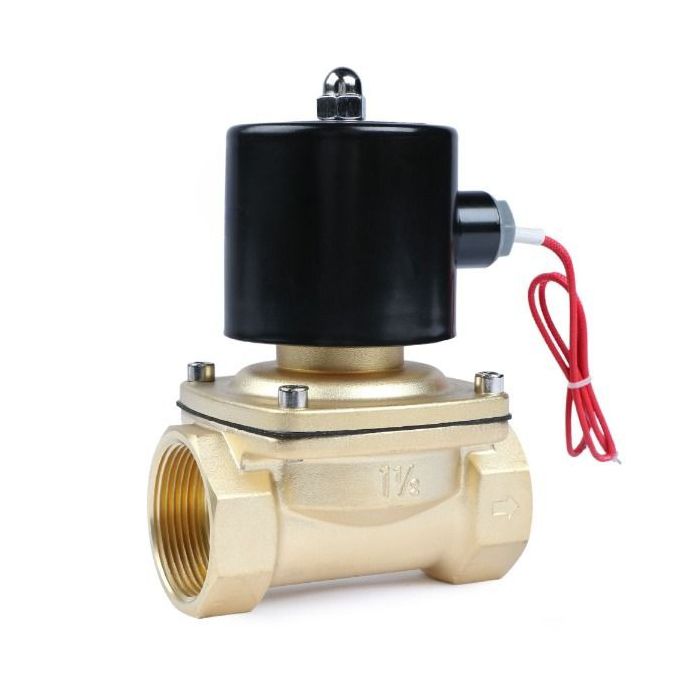

Brass Electric Solenoid Valve- 1-1/2" 12V DC, Normally Closed, VITON Seal
An electric solenoid valve with a normally closed (N/C) design is crafted with a high-quality brass body, featuring two-way inlet and outlet ports with 1-1/2" female threaded (NPT) connections. It comes with a heat and oil resistant Viton gasket, making it suitable for various applications including hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. This solenoid valve has an IP65 rating, making it able to withstand water spray, though it is advised to enclose them in protective housing if permanently installed outdoors. Please note that this valve is not intended for underwater use.
Customers have chosen this valve for a multitude of purposes, such as do-it-yourself projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation and reverse osmosis systems, as well as controlling the flow of propane gas.
Specifications:
- Pipe Size: 1-1/2" (1.5")
- Flow Aperture: 40 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power Rating: 21.5 W
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational Pressure Range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 40 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 40 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation and is not a 100% duty cycle device. During normal conditions, the valve will become hot when energized, with the coil reaching a maximum temperature of approximately 176°F (80℃), complying with national standard: JB/T7352-2010. Prolonged energization exceeding 8 hours may cause the coil to burn.
WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
For detailed instructions, please refer to the provided Instruction Manual.
