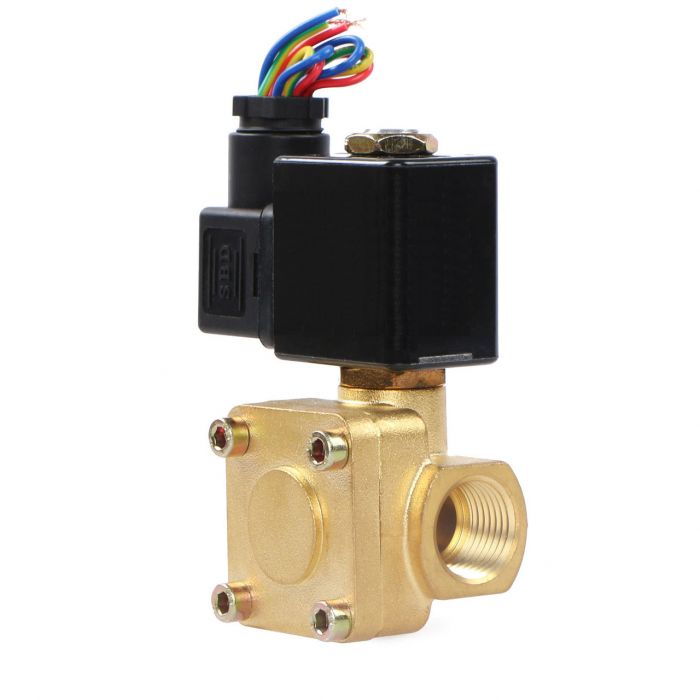

Electric Brass Solenoid Valve- 1/2" 12V DC Normally Closed, Pilot Type, VITON SEAL
An electric solenoid valve with a normally closed (N/C) operation, featuring a high-quality brass body, 1/2" female threaded (NPT) connections, and a Viton gasket that is resistant to heat and oil. This valve is suitable for various applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. With an IP65 rating, it can withstand water spray, but if installed permanently outdoors, protective housing is recommended. Note that this valve is not for underwater use.
Customers often select this general purpose valve for a range of uses including DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, and regulating propane gas flow.
Specifications
- Pipe Size: 1/2"
- Flow Aperture: 12 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Pilot
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 12 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range: 0.1-16 Bar (0 to 232 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 4.8 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: This valve is not designed for continuous operation and is not a 100% duty cycle device. During normal operation, the solenoid valve can become hot with the coil reaching up to approximately 176°F (80°C), in compliance with national standards (JB/T7352-2010). Continuously energizing the coil for more than 8 hours may cause it to burn.
WARNING: This product may expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
```
