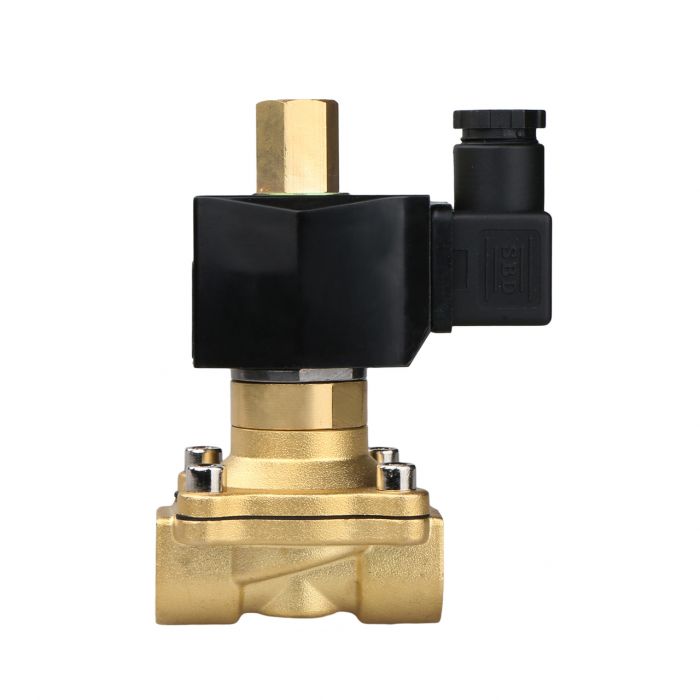

Electric Solenoid Valve - 1/2" 12V DC Brass Body Normally Open, NBR SEAL
Electric solenoid valves with normally open (N/O) operation are designed with a sturdy brass body, 1/2" female threaded (NPT) connections, and nitrile rubber (NBR) seals. Suitable for various applications such as hot or cold water, natural gas, air, low viscosity fluids (< 20 cst), and oils. These solenoid valves have an IP65 rating, making them resistant to water spray. However, if installed outdoors permanently, it is advisable to enclose them in protective housing. Not intended for underwater use. Customers opt for this versatile valve for DIY projects, moderate temperature uses, water exchange in aquariums, air horns, or draining moisture from air tanks.
Specifications
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: NBR
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Open
- Voltage: DC 12V ± 10%
- Power rating: 19 W
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 4.8 Cv
- Temperature, Minimum: 23°F (-5°C)
- Temperature Maximum: 176°F (80°C)
Overheating Warning: Not suitable for continuous operation (not a 100% duty cycle). During normal operation, the solenoid valve will get hot when energized. The coil temperature can reach a maximum of about 176°F (80°C), compliant with national standards. Continuous energization beyond 8 hours may cause coil burnout. This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
```
