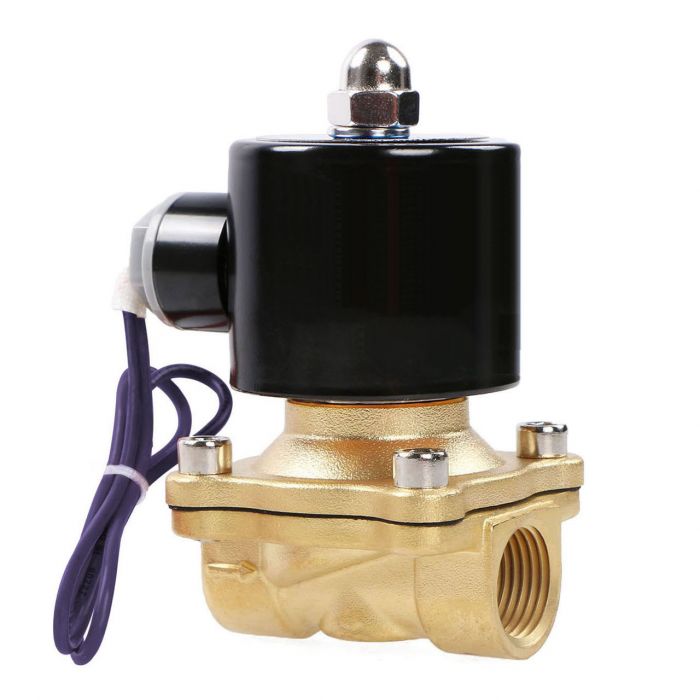

Electric Solenoid Valve - 1/2" 12V DC Brass Body Normally Closed with VITON Seal
An electric solenoid valve with a brass body and 1/2" female threaded connections. Suitable for hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons. Features a Viton gasket and IP65 rating. Enclosure recommended for outdoor installation. Not for underwater use. Ideal for various applications such as DIY projects, moderate temperature environments, harsh chemicals, irrigation systems, reverse osmosis systems, and propane gas control.
Specifications:
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power Rating: 20 W
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational Pressure Range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 4.8 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 4.8 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature, Maximum: 248°F (120°C)
Overheating Warning: Not suitable for continuous operation. The solenoid valve will get hot during normal operation. Please ensure compliance with the national standard JB/T7352-2010.
Lead Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects. For more information, visit www.P65Warnings.ca.gov.
Refer to the instruction manual for more details.
