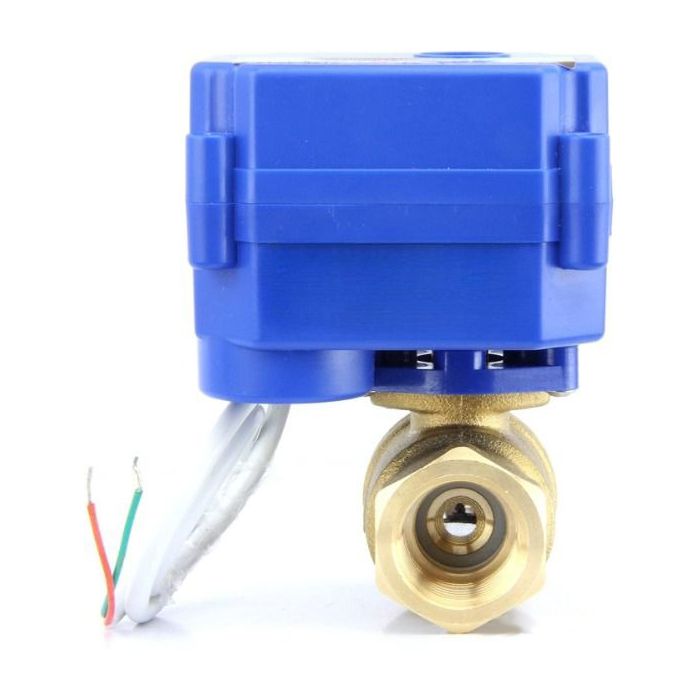

Motorized Ball Valve- 1" Brass Electrical Ball Valve with Standard Port, 85-265 V AC, 2 Wire Auto Return

$26.78
In stock
SKU
JFMSV00051

Motorized Stainless Steel Ball Valve - 1 Inch

Motorized ball valves play a crucial role in various applications. This stainless steel model with a 1” diameter can open and close in 6-8 seconds, and it will hold its new position without using any energy. This sets it apart from many solenoid valves, which typically remain energized continuously in a new position. The energy consumption of motorized ball valves occurs only during the transition between open and close states.

These valves are commonly used in home automation systems and can serve as emergency backups for water systems. They are particularly popular among home brewers. Our motorized ball valves offer high-quality construction at an affordable price point for individual buyers.

Specifications:

  • Valve Material: Brass
  • Ball Seat: PTFE
  • Seal: EPDM
  • Operating Time: 3-5 Seconds
  • Working Voltage: 85-265 V AC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 100°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
