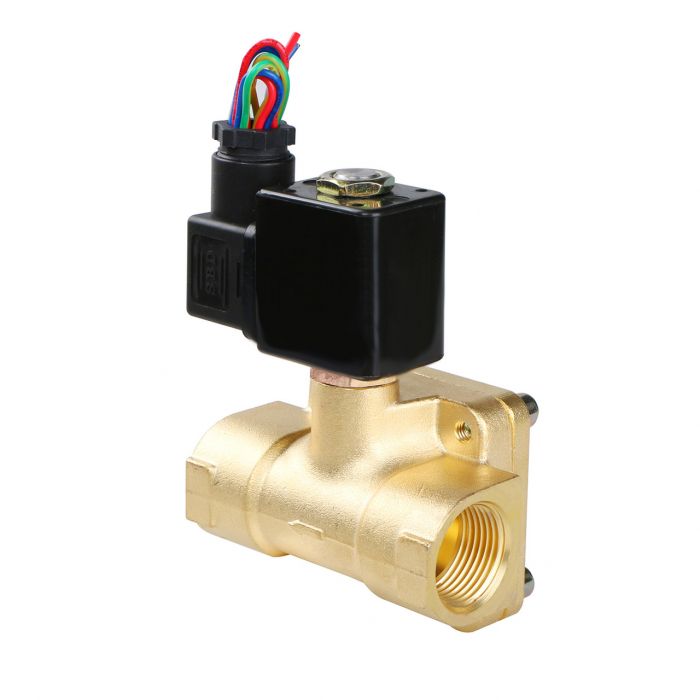

Electric Solenoid Valve - 3/4" 110V AC Brass Body Normally Closed, Pilot Type, VITON SEAL

$36.99
In stock
SKU
JFSV00062

A high pressure electric solenoid valve with normally closed (N/C) operation, constructed with a durable brass body. This valve features two-way inlet and outlet ports with three-quarter inch (3/4") female threaded (NPT) connections, along with a heat and oil resistant Viton gasket. It is suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons such as gasoline, kerosene, or diesel fuel. The solenoid valves have an IP65 rating, making them able to withstand spray from water. For permanent outdoor installations, it is recommended to enclose the valves in protective housing, as they are not suitable for underwater use.

Customers choose this general purpose valve for various applications including do-it-yourself projects, moderate temperature uses, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, and to regulate the flow of propane gas.

Specifications

  • Pipe Size: 3/4"
  • Flow Aperture: 20 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: VITON
  • Operation Type: Pilot type
  • Operation Mode: Normally Closed
  • Voltage: AC 110V ± 10%
  • Power rating: 10 VA
  • Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
  • Operational pressure range: 0.1-16 Bar (0 to 232 PSI)
  • Flow capacity: 7.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
  • Flow value: 7.6 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

OVERHEATING WARNING: This solenoid valve is not designed for continuous operation (not a 100% duty cycle). When energized under normal conditions, the valve will get hot. The coil can reach a maximum temperature of about 176°F (80℃), in compliance with national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
