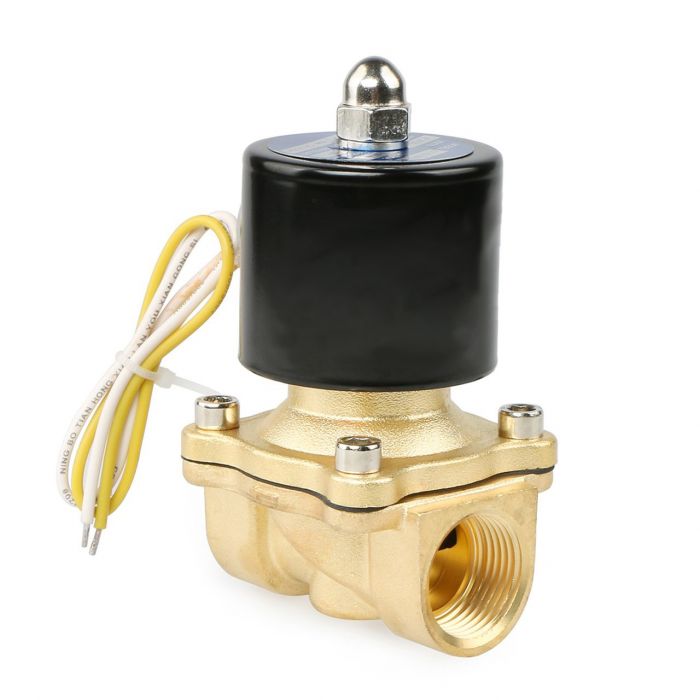

Electric Solenoid Valve- 3/4" 110V AC Brass Body Normally Closed with VITON SEAL

Electric solenoid valves are essential components for various applications, offering reliable performance and durability. This high-quality brass electric solenoid valve features a 3/4" female threaded connection and a heat and oil resistant Viton gasket. Suitable for a wide range of mediums such as hot or cold water, gas, air, oils, and hydrocarbons, including gasoline, kerosene, and diesel fuel.

The solenoid valves carry an IP65 rating, making them protected against water spray. It is recommended to enclose the valves in protective housing if permanently installed outdoors, as they are not suitable for underwater use.

Customers prefer this general purpose valve for a variety of applications including DIY projects, moderate temperature environments, harsh chemical handling, flow control in irrigation systems, reverse osmosis systems, and propane gas flow control.

Specifications

• Pipe Size: 3/4"
• Flow Aperture: 20 mm
• Body Material: Brass
• Gasket / Diaphragm / Seal: VITON
• Operation Type: Semi-direct Lift Valve
• Operation Mode: Normally Closed
• Voltage: AC 110V ± 10%
• Power rating: 21 VA
• Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
• Operational pressure range:
  Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
  Oil: 0-5 Bar (0 to 72 PSI)
• Flow capacity: 7.6 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
• Flow value: 7.6 Cv
• Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
• Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
• Also available with stainless steel body: Item #XXXXXXXXX

Overheating Warning: This solenoid valve is semi-direct lift and not designed for continuous operation (not a 100% duty cycle). During normal operation, the valve will get HOT with the coil reaching a maximum temperature of about 176°F (80°C), compliant with national standards.

Warning: This product contains chemicals including lead known to the State of California to cause cancer and reproductive harm. For more details, visit www.P65Warnings.ca.gov.

For detailed instructions, please refer to the instruction manual.
