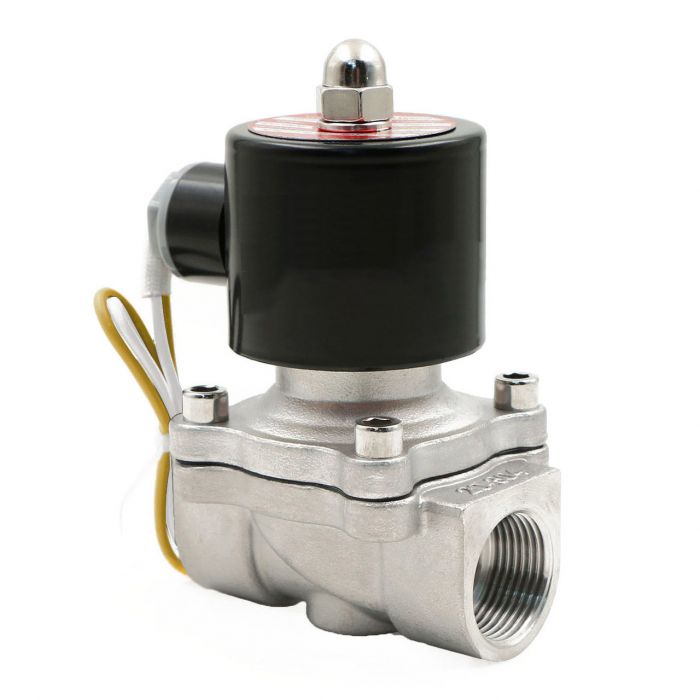

Electric Solenoid Valve- 3/4" 110V AC Stainless Steel Body Normally Closed with VITON SEAL
Our electric solenoid valve is a high-quality option made with a stainless steel body and 0.75 inch female threaded connections. It features a heat and oil resistant Viton gasket, suitable for various applications such as hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. With an IP65 rating, the valve can withstand water spray, but for outdoor use, it's recommended to enclose it in protective housing (not suitable for underwater use). Customers choose this valve for DIY projects, moderate temperature applications, harsh chemicals, irrigation systems, reverse osmosis systems, or propane gas flow control.
- Specifications:
- Pipe Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 7.6 gallons per minute (GPM) of water at 60 °F with a pressure drop of 1 PSI
- Flow value: 7.6 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
- Also available with brass body: Item #USS2-00007
OVERHEATING WARNING: This valve is not designed for continuous operation (not a 100% duty cycle). When energized, it will get hot. The coil temperature may reach about 176°F (80℃) under normal conditions, complying fully with national standard: JB/T7352-2010. Do not energize continuously for more than 8 hours to avoid coil burn.
`
