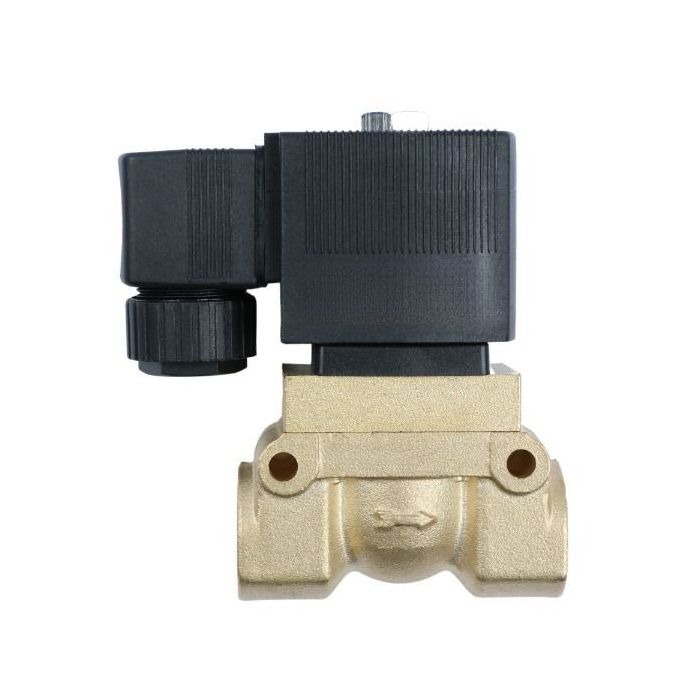

High Pressure Solenoid Valve - 1/4" 12V DC Brass 50 bar, 300 ℉ High-Pressure High-Temperature Solenoid Valve
High Pressure Solenoid Valve
A high-pressure solenoid valve with a design resistant to high temperatures and pressures. Built to withstand extreme conditions without damage, this valve features a valve body made of high-quality brass and a seal material of PTFE, ensuring a strong inner structure for resisting high-pressure liquid, gas, oil, or air transfer up to 50bar - several times higher than common solenoid valves.
Capable of operating in high-pressure systems, this valve also offers excellent temperature resistance of up to 300 degrees F. Its versatility and high responsiveness make it suitable for a wide range of HVAC, industrial, household, or commercial applications.
Specifications:
- Model: HSV01
- Size: 1/4 inches
- Material: Brass
- Working Voltage: 12V DC
- Output Power: 16 W
- N.C./N.O.: Normally Closed
- Working Pressure: < 5.0 MPa
- Medium Temperature: -5-150°C (23-302℉)
- Orifice: 12 mm
- Flow Rate: 2.33 Cv
- Seal: PTFE
- Operation Type: Pilot-operated
- Open/Close Time: < 1 s
