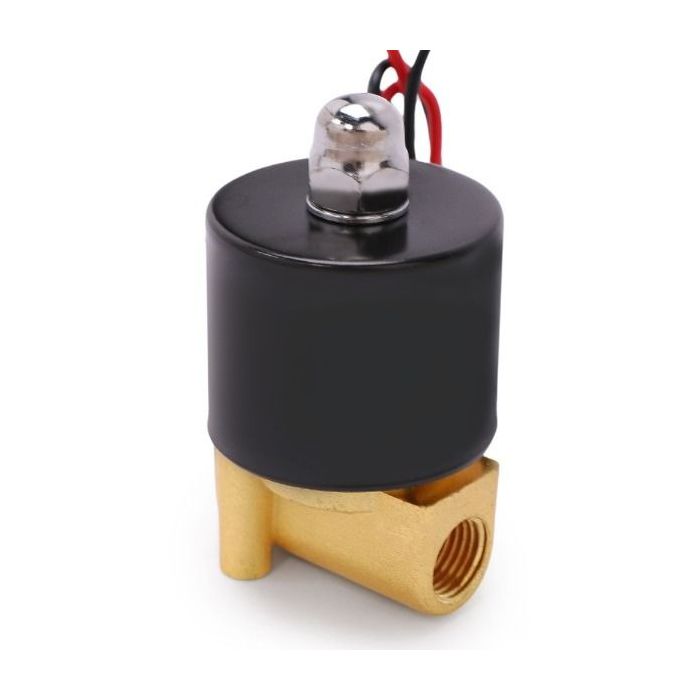

Zinc-Alloy 1/4" Solenoid Valve with NBR Seal - 24V AC

$16.99
In stock
SKU
JFZSV00011

Utilizing cutting-edge technologies, we offer high-quality valves at competitive prices. The Zinc-alloy Solenoid Valves from our ZSV Series are the perfect solution for your applications.

These solenoid valves boast a zinc alloy valve body, providing both cost-efficiency and ample pressure resistance when compared to brass or stainless steel alternatives.

Specifications:

  • Pipe Size: 1/4"
  • Flow Aperture: 2.5 mm
  • Body Material: Zinc Alloy
  • Gasket / Diaphragm / Seal: NBRO
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: AC 24V
  • Power Rating: 22 VA
  • Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
  • Operational Pressure Range:
    • Air/Water: 0-8 Bar (0 to 116 PSI)
    • Oil: 0-5 Bar (0 to 72 PSI)
  • Flow Value: 0.23 Cv
  • Temperature Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
  • OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). While energized, under normal operating conditions, the solenoid valve may get HOT. The coil will reach a maximum temperature of about 176°F (80℃), in compliance with national standard: JB/T7352-2010. Continuous energization for more than 8 hours may lead to coil burning.
