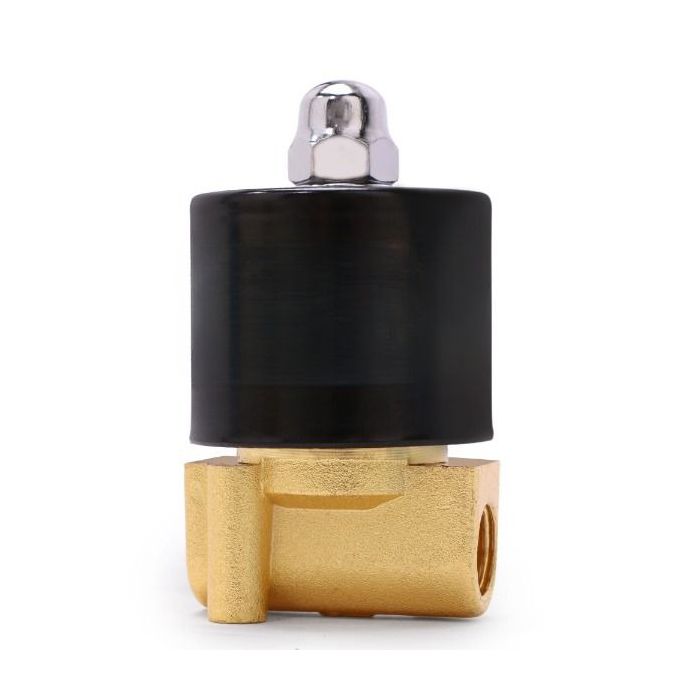

Zinc-Alloy 110V AC Solenoid Valve with NBR Seal - 1/4" Size

$16.99
In stock
SKU
JFZSV00009

Our latest technology-driven valves offer superior quality at an affordable price point. The Zinc-alloy Solenoid Valves from our ZSV Series are designed to excel in various applications. Featuring a zinc alloy valve body, these solenoid valves provide strong pressure resistance while being more cost-effective compared to brass or stainless steel options.

Specifications:

  • Pipe Size: 1/4"
  • Flow Aperture: 2.5 mm
  • Body Material: Zinc Alloy
  • Gasket / Diaphragm / Seal: NBRO
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: AC 110V
  • Power rating: 22 VA
  • Suitable Media: Water, oil, Diesel fuel, kerosene etc.
  • Operational pressure range: Air/Water: 0-8 Bar (0 to 116 PSI); Oil: 0-5 Bar (0 to 72 PSI)
  • Flow value: 0.23 Cv
  • Temperature Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

OVERHEATING WARNING: These solenoid valves are not intended for continuous operation (not a 100% duty cycle). When energized under normal conditions, the valve may heat up significantly, with the coil reaching a maximum temperature of about 176°F (80℃). This complies with the national standard: JB/T7352-2010. To avoid burning the coil, do not energize continuously for more than 8 hours.
