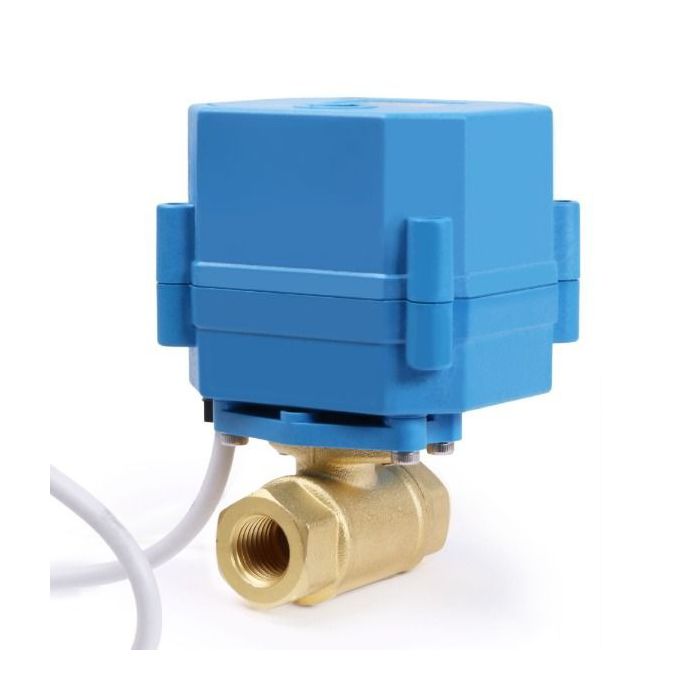

Motorized Ball Valve - 1/4" Brass Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return

$24.91
In stock
SKU
JFMSV00029

Motorized Ball Valves

Motorized ball valves are essential equipment across various applications. This model features an opening and closing time of 3-5 seconds, and it remains in its new position with minimal energy consumption. Contrary to many solenoid valves, motorized ball valves do not require continuous energy when in a new position. They only expend energy during the transition from open to close or vice versa.

The 2-wire auto return model is ideal for situations where the valve must be closed in the event of power loss. It can be energized to open and remain connected with minimal energy usage once fully open. To close the valve, simply cut off power supply. This valve is user-friendly as it can be operated with a straightforward on-off switch. It stays open when powered on and automatically closes when turned off or in case of power loss.

Specifications:

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 5 W
  • Max Torque: 2 Nm
  • Max Medium Pressure: 1.0 MPa
  • Temperature Range for Flow Medium: 2°C to 90°C
  • Ambient Temperature Range: -15°C to 50°C
  • Enclosure Rating: IP67
  • Life Expectancy: 70,000 Cycles at Least
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
