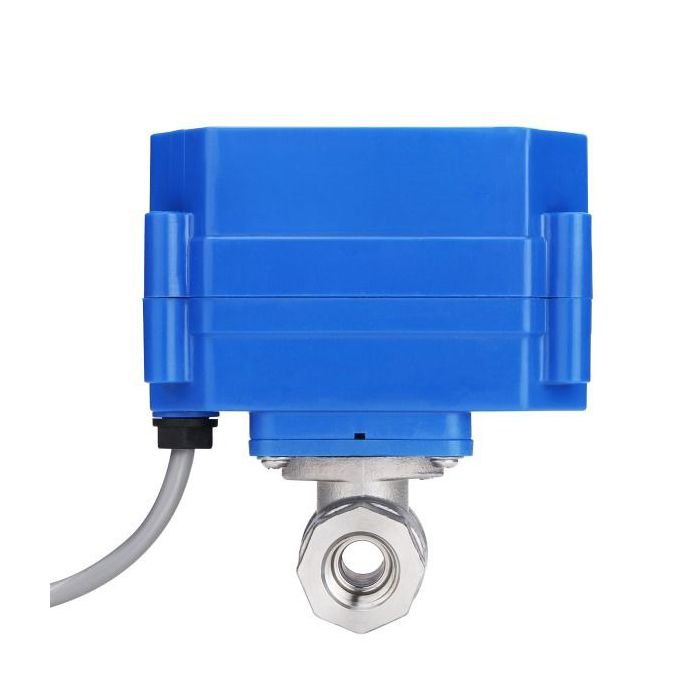

Motorized Ball Valve- 1/4" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V DC, 5 Wire Setup
Mototized Ball Valve with 5 Wire Model
Motorized ball valves play a crucial role in various applications by offering efficient performance. This particular model is designed to open and close within 6-8 seconds, remaining in its new position with minimal energy consumption. This sets motorized ball valves apart from many solenoid valves which typically remain energized continuously in a new position. With the 5 wire model, the valve's status can easily be displayed, making it ideal for applications where monitoring is important.
The stainless steel ball valve included in this model is NSF certified, making it suitable for use in drinking water pipelines. Convenient wiring diagrams and instructions are provided to assist in connecting the valve to power sources and status indicators. This 5 wire model is a perfect match for home automation systems, offering both functionality and ease of use.
Specifications:
- Valve Material: SS304
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 5 Wire Setup
