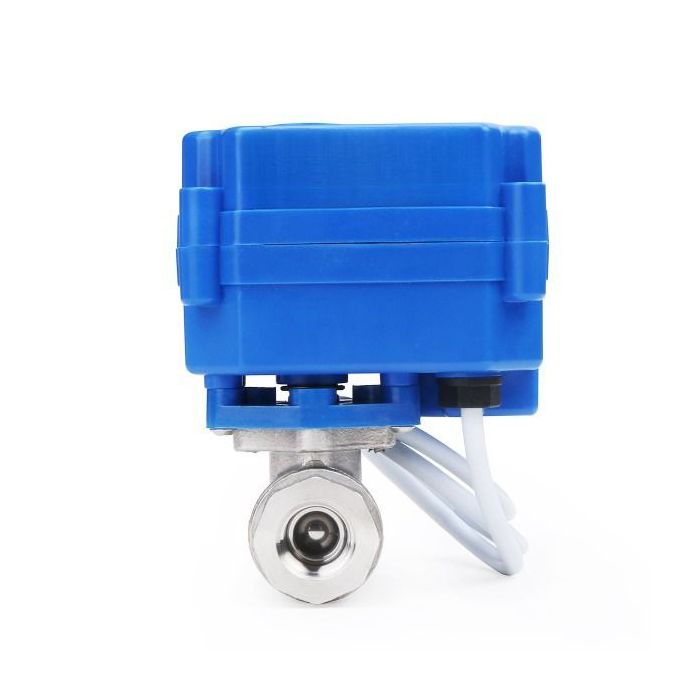

Motorized Ball Valve - 1/4" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return

Motorized ball valves play a crucial role in various applications. This particular model boasts an opening and closing time of 3-5 seconds, staying securely in its new position with minimal energy consumption. A notable advantage of motorized ball valves over many solenoid valves is their efficient energy usage. Unlike most solenoid valves that remain energized continually in a new position, motorized ball valves only expend energy during the opening or closing process.

The 2-wire auto-return design is particularly suitable for scenarios where the valve must close in the event of a power outage. The valve can be activated to open and keep running with minimal energy once fully open. To initiate closure, simply cut off power to the valve. It is user-friendly as it can be operated with a basic on/off switch. When switched on, it will stay open; when turned off or in the event of a power loss, the valve will automatically close.

Specifications
U.S. Solid Model: USS-MSV00027 (Normally-Open Version:JFMSV00077), (25-Pack Version: JFMSV00104)
Valve Material : SS304
Ball Seal: PTFE
Operating Time : 3-5 Seconds
Working Voltage : 9-24V AC/DC
Max Power : 5 W
Max Torque : 2 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -10°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type: Full
Thread Type : NPT
Wiring Type : 2 Wire Auto Return
