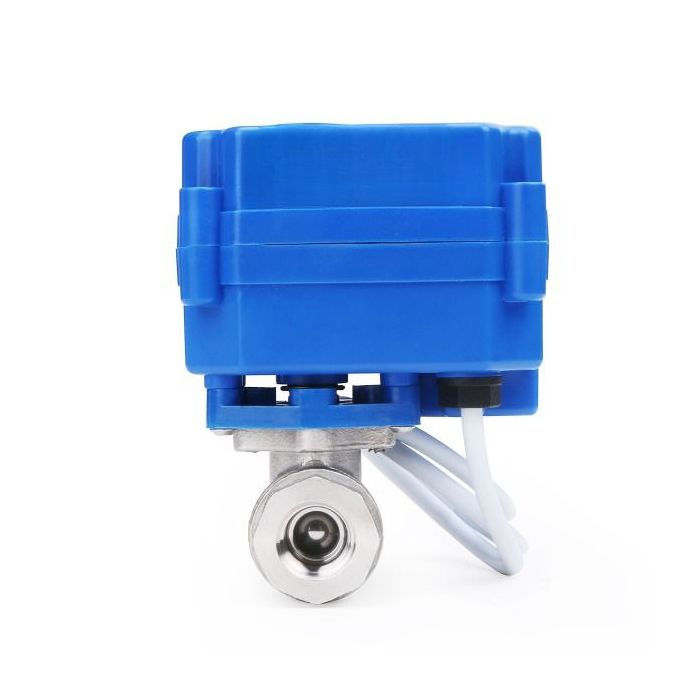

Motorized Ball Valve- 1/4" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return, Normally Open
Motorized ball valves are essential equipment for various applications. This model features quick opening and closing in 3-5 seconds, with minimal energy consumption to maintain its new position. This sets motorized ball valves apart from many solenoid valves, which typically require continuous energy when in a new position. The 2-wire auto return model is ideal for scenarios where the valve needs to be opened during power loss. It can be energized to close and remain connected with minimal energy usage once fully closed. To open, simply cut off power to the valve. Operating this valve is straightforward, as it can be controlled with a simple on-off switch. When on, it stays closed; when off or in case of power loss, the valve automatically opens.
The stainless steel ball valve is NSF certified, making it suitable for installation in drinking water pipelines.
Specifications:
- Valve Material: SS304
- Ball Seal: PTFE
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -10°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
