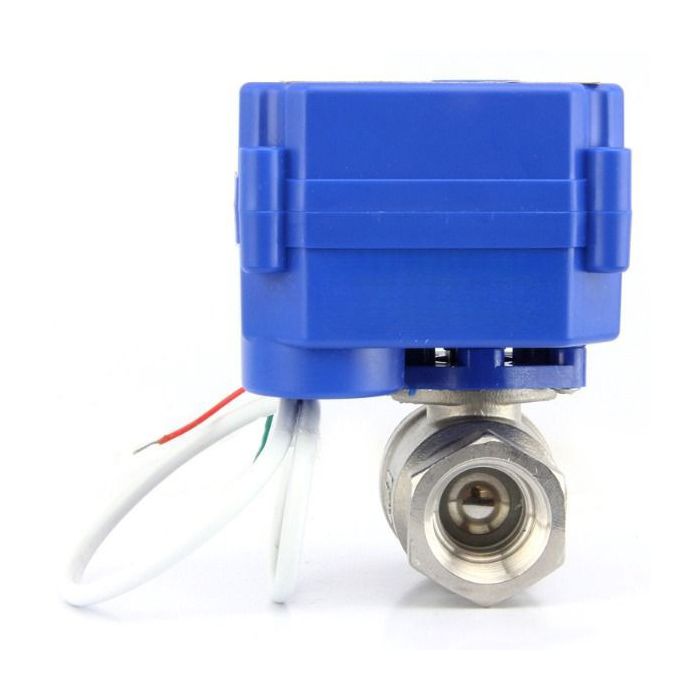

Motorized Ball Valve- 1/4" Stainless Steel Digital Electric Valve with Full Port, 85-265 V AC, 2 Wire Auto Return

$22.54
In stock
SKU
JFMSV00052

Motorized ball valves are a crucial component in a wide range of applications. This stainless steel model with a 1/4” size can open and close in just 6-8 seconds, retaining its new position without any energy consumption. Unlike many solenoid valves that stay energized continuously in a new position, motorized ball valves only use energy when transitioning from open to close, or vice versa.

These valves are commonly integrated into home automation systems, serving as reliable emergency backups for water systems. They are particularly popular among home brewers nationwide for their efficiency. The motorized ball valves offered here combine durable construction with affordability for individual buyers.

Specifications:

  • Valve Material : SS304
  • Ball Seat: PTFE
  • Seal: EPDM
  • Operating Time : 3-5 Seconds
  • Working Voltage : 85-265 V AC
  • Max Power : 5 W
  • Max Torque : 2 N m
  • Max Medium Pressure : 1.0 Mpa
  • Temperature Range for Flow Medium : 0°C to 100°C
  • Ambient Temperature Range : -5°C to 40°C
  • Enclosure Rating : IP65
  • Life Expectancy : 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type : NPT
  • Wiring Type : 2 Wire Auto Return

`
