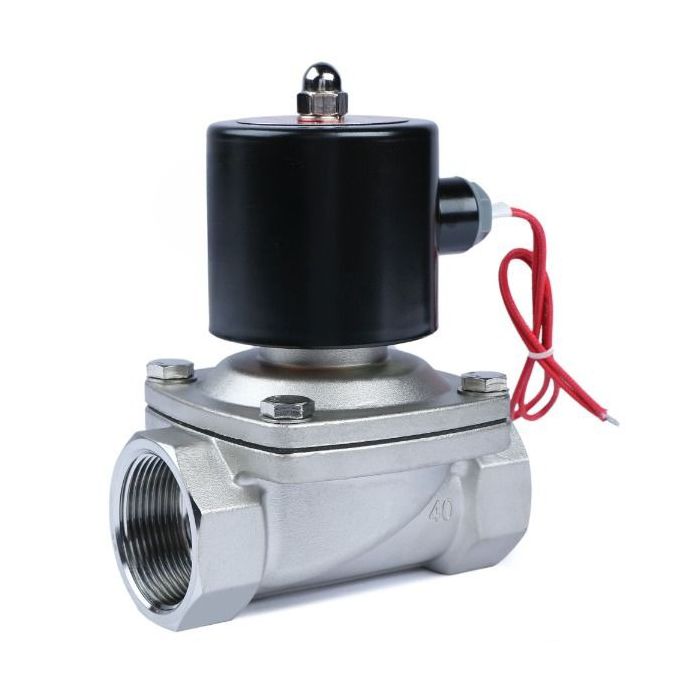

1-1/2" Stainless Steel Solenoid Valve with 12V DC Electric Power, Normally Closed and Viton Seal
An electric solenoid valve with a stainless steel body, two-way inlet and outlet ports, and a heat and oil resistant Viton gasket. Suitable for hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons. IP65 rated for water resistance, but recommended to be enclosed if installed outdoors. Not for underwater use. Ideal for DIY projects, moderate temperature applications, harsh chemicals, irrigation systems, reverse osmosis systems, and propane gas flow control.
Specifications:
- Pipe Size: 1-1/2" (1.5")
- Flow Aperture: 40 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 21.5 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 29 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 29 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The solenoid valve will get hot under normal conditions, with the coil reaching a max temperature of about 176°F (80℃). Avoid energizing continuously for more than 8 hours to prevent coil burn.
For detailed instructions, please refer to the Instruction Manual.
