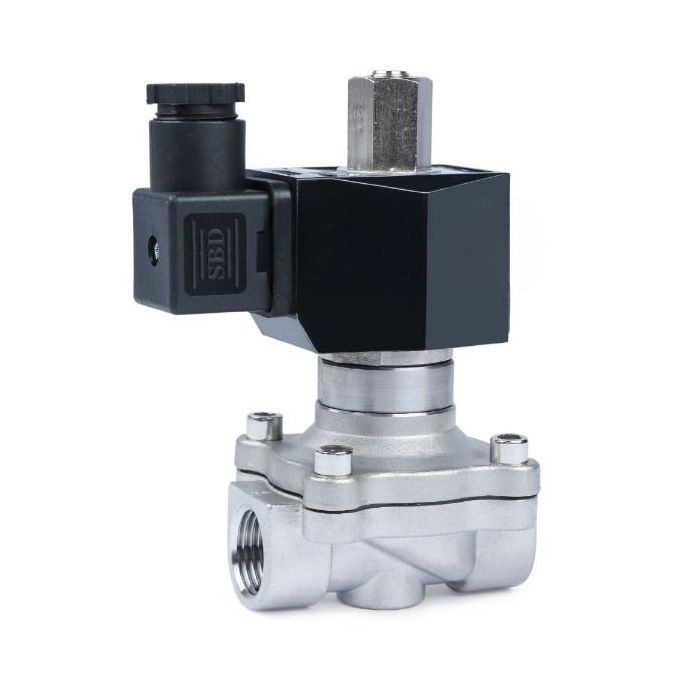

1/2" Stainless Steel Solenoid Valve - 110V AC Normally Open, Viton Seal

$45.99
In stock
SKU
JFSV00111

This stainless steel solenoid valve is constructed from industrial-grade materials, providing exceptional resistance to corrosion, ease of welding, and suitability for high-temperature applications. Its versatility extends to compatibility with diesel fuel, natural gas, air, and even projects involving drinking water or other water-based fluids. Engineered for rapid response, this solenoid valve can open or close in less than a second when activated, ensuring immediate flow control upon activation or deactivation.

With proper maintenance and operating conditions, engineers estimate its life cycle to exceed a million cycles. In its default state, the solenoid valve utilizes the solenoid's magnetic field to move the plunger and close the orifice, effectively stopping the flow of fluid or gas. Energizing the solenoid changes this state, opening the valve for flow to pass through.

This solenoid valve features a Viton gasket, a modern material highly regarded for its chemical inertness and frequent use with gasoline, kerosene, and other organic solvents. Its direct-acting design allows for versatile applications across various industries, including water projects, chemical processing, power generation, and healthcare. The valve's swift and precise fluid control capabilities make it ideal for applications in brewing systems and automatic irrigation.

Specifications:

  • Size: 1/2"
  • Body Material: Stainless Steel
  • Flow Aperture: 16 mm
  • Gasket / Diaphragm / Seal: VITON
  • Rated voltage: AC 110 V, ± 10%
  • Power rating: 24 VA
  • Operation Type: Semi-direct lift valve
  • Operation Mode: Normally Open
  • Operational pressure range:
    • 0 to 101 PSI / 0-0.7 Mpa (for Air, Water)
    • 0 to 72 PSI / 0-0.5 Mpa (for Oil)
  • Flow capacity: 4.8 gallons per minute (GPM) of water at 60℉ with a pressure drop of 1 PSI
  • Operational temperature: 14 - 248 degrees Fahrenheit

OVERHEATING WARNING: This solenoid valve is not designed for continuous operation and does not have a 100% duty cycle. When energized under normal conditions, the valve will become hot, with the coil reaching a maximum temperature of about 80℃. It complies fully with national standard JB/T7352-2010. If energized continuously for more than 8 hours, the coil may burn out.
