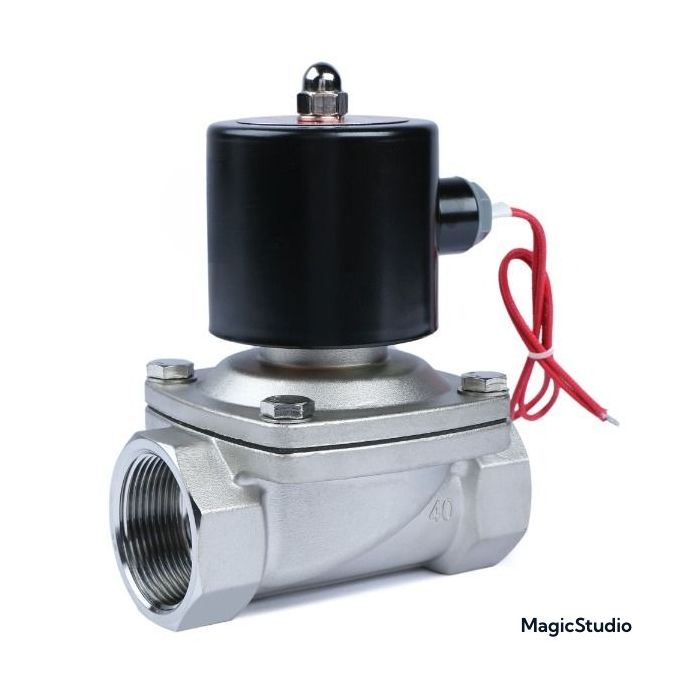

1-1/2" Stainless Steel Electric Solenoid Valve, 110V AC, Normally Closed with Viton Seal
Our electric solenoid valve features high-quality stainless steel construction, two-way inlet and outlet ports with 1-1/2" female threaded connections, and a Viton gasket that is resistant to heat and oil. It is suitable for various applications including hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons like gasoline, kerosene, and diesel fuel. The IP65 rating ensures resistance to water spray, although we recommend enclosing the valve in a protective housing if permanently installed outdoors (not for underwater use). Customers appreciate this valve for DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or managing propane gas flow.
Specifications:
- Pipe Size: 1-1/2" (1.5")
- Flow Aperture: 40 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 27.5 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 29 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 29 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: This valve is not designed for continuous operation (not a 100% duty cycle). While energized, the solenoid valve will become hot under normal operating conditions. The coil temperature can reach a maximum of about 176°F (80℃), meeting national standards. Continuous energization for more than 8 hours may cause the coil to burn. Please refer to the instruction manual for detailed guidance.
