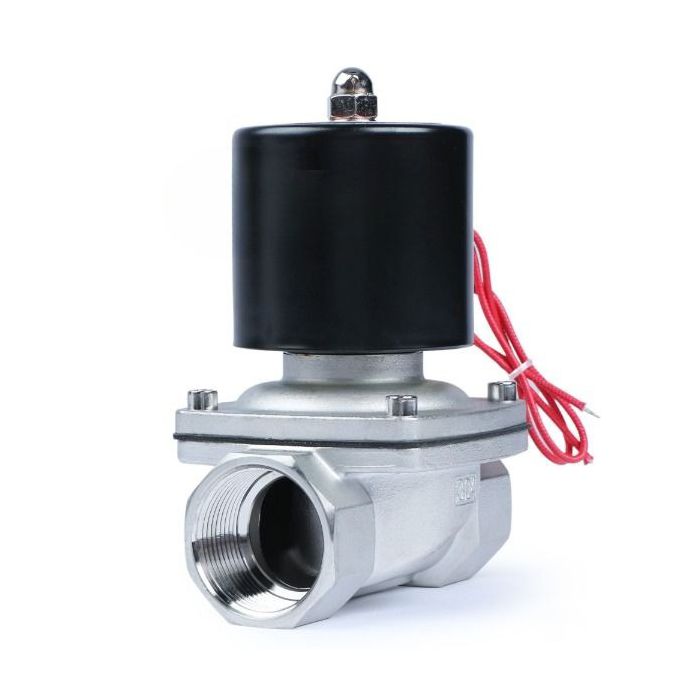

1-1/4" Stainless Steel Solenoid Valve, 12V DC Electric Solenoid Valve, Normally Closed, Viton Seal

$94.95
In stock
SKU
JFSV00104

An electric solenoid valve featuring a stainless steel body, two-way inlet and outlet ports with 1-1/4" female threaded connections, and a Viton gasket for heat and oil resistance. It is suitable for various mediums such as hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. With an IP65 rating, this valve can endure water spray but for outdoor installation, it is recommended to enclose it in protective housing. Please note that it is not suitable for underwater use.

This general-purpose valve is preferred by customers for a variety of applications including DIY projects, moderate temperature situations, harsh chemical environments, flow control in irrigation systems, reverse osmosis systems, and propane gas control.

Specifications:

  • Pipe Size: 1-1/4" (1.25")
  • Flow Aperture: 35 mm
  • Body Material: Stainless Steel
  • Gasket / Diaphragm / Seal: Viton
  • Operation Type: Semi-Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V ± 10%
  • Power rating: 21.5 W
  • Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
  • Operational pressure range:
    • Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
    • Oil: 0-5 Bar (0 to 72 PSI)
  • Flow capacity: 24 GPM of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 24 Cv
  • Temperature, Minimum: 14°F (-10°C)
  • Temperature, Maximum: 248°F (120°C)

OVERHEATING WARNING: This valve is not designed for continuous operation and does not have a 100% duty cycle. When energized, it will heat up under normal conditions, reaching a maximum temperature of around 176°F (80℃), which meets national standards. To prevent burning, avoid energizing it continuously for more than 8 hours. Refer to the provided instruction manual for further guidance.
