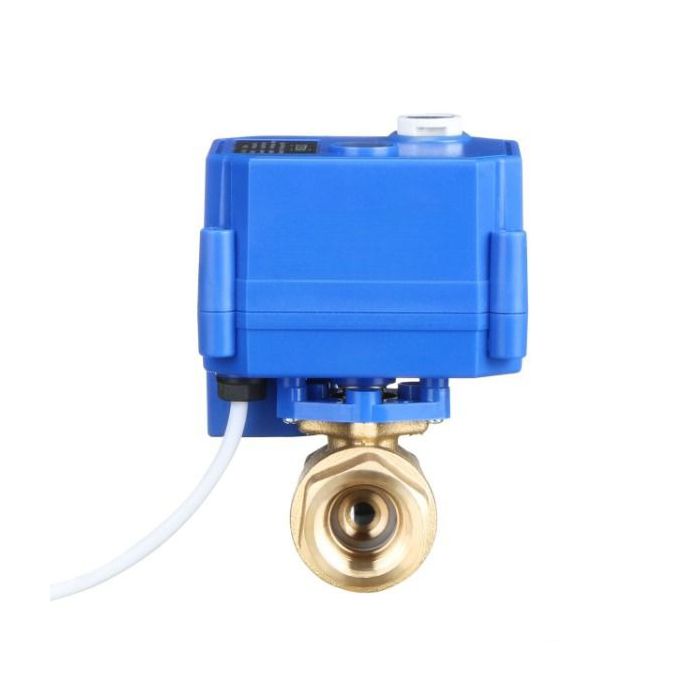

High-Quality Motorized Ball Valve with Automatic Return

The ½'' motorized ball valve with automatic return is designed to meet the needs of home tinkerers seeking convenience and reliability. Crafted with a sturdy brass body, this valve offers durability and performance.

Operating on 9V to 24V of DC or AC power, this valve features automatic return functionality and is Normally Closed. When energized, it swiftly opens within 6-8 seconds and then maintains a minimal energy consumption level through limit switches.

Unlike traditional solenoid valves that are prone to overheating, this valve remains cool even when fully opened, ensuring continuous operation without any risk of overheating issues.

For added convenience and safety, the valve is equipped with an auto return feature that ensures automatic shut-off in case of power outages, preventing potential leaks and flooding in water systems.

With an IP65 rating, this valve's casing provides superior protection against dust and water, making it suitable for various environments and applications.

The top-mounted Position Indicator allows for easy monitoring of the valve's on/off status, while the manual function enables manual adjustments when needed, even in the absence of power.

Specifications:

• Valve Material: Brass
• Ball Seal: PTFE
• Close/Open Time: 6~8 Seconds
• Working Voltage: 9-24V AC/DC
• Max Power: 5 W
• Max Torque: 2.5 N m
• Max Pressure: 1.0 MPa
• Temperature Range for Flow Medium: 0°C to 100°C
• Ambient Temperature Range: -5°C to 40°C
• Enclosure Rating: IP65
• Life Expectancy: 80,000-100,000 Cycles
• Bore Type: Full
• Thread Type: NPT

For detailed instructions on usage and maintenance, refer to the included Instruction Manual.
