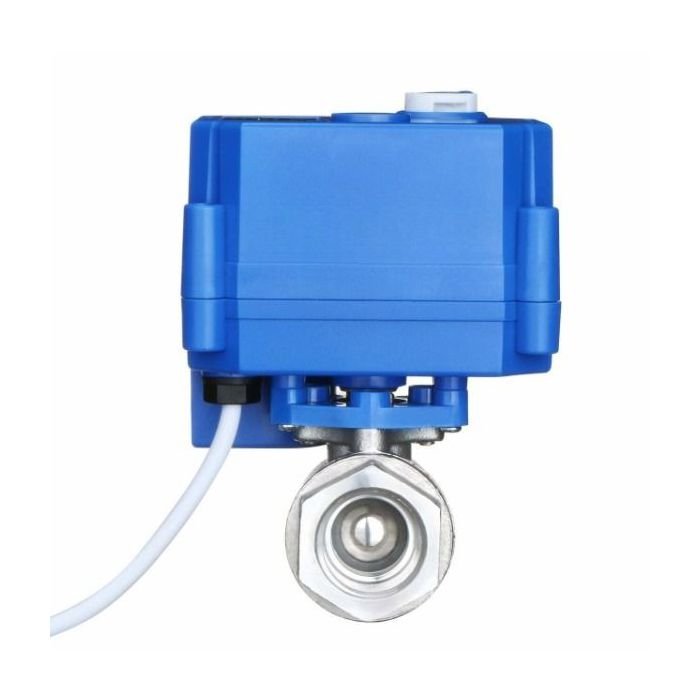

Stainless Steel Motorized Ball Valve- 1/2" with Manual Function, Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
The ½'' motorized ball valve in stainless steel with automatic return is a versatile option for home projects. Crafted from SS304 stainless steel, this valve is ideal for applications involving drinking water. Operating with 9V to 24V of DC or AC power, the Normally Closed valve opens in 6-8 seconds upon activation, equipped with limit switches to maintain energy efficiency. In the event of a power outage, the valve will automatically revert to a closed position, offering a reliable solution to water system control.
Unlike traditional solenoid valves, this model minimizes the risk of overheating by consuming low energy levels when open. The automatic return feature adds an extra layer of convenience, ensuring prompt shutdown in emergencies to prevent potential water damage. With an IP rating of 65, the valve guarantees protection against dust and water ingress, making it suitable for various environments. The Position Indicator simplifies monitoring the valve's status, while the manual function allows for adjustments and operation in the absence of power.
Specifications:
- Valve Material: SS304
- Ball Seal: PTFE
- Close/Open Time: 6~8 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2.5 N m
- Max Pressure: 1.0 MPa
- Temperature range for flow medium: 0°C to 100°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000-100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
Complete your projects with the assistance of this reliable stainless steel ball valve with automatic return functionality.
