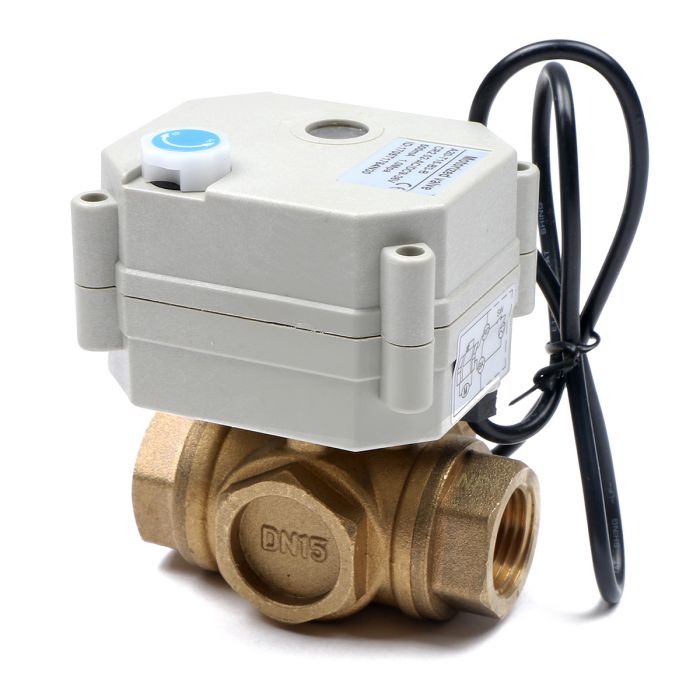

Motorized Brass Ball Valve- 1/2" AC 110V 3 Way L Type
Motorized ball valves play a crucial role in various applications. This particular model is engineered to open and close within 3-5 seconds, maintaining its position with minimal energy consumption. A notable feature distinguishing motorized ball valves from many solenoid valves is their energy efficiency. While most solenoid valves require continuous energy when in a new position, motorized ball valves only consume energy during the transition between open and closed states. The valve can be energized to open and left connected with minimal energy usage once fully opened. To close, simply deactivate the power supply. Operating this valve is convenient, as it can be controlled with a basic on-off switch. When powered on, the valve stays open, and when powered off or in case of power loss, it automatically closes.
The motorized ball valve operates at a working voltage of 9-24V AC/DC and comes with a power adapter (AC input voltage: 110V-230V, DC output voltage: 12V). If a power supply within the range of 9-24V AC/DC is required, the terminal connected to the power adapter can be cut off for custom wiring.
Specifications:
- Valve Material: Brass
- Seal: FKM
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V DC/AC
- Input Voltage (adapter): AC 110V-230V
- Max Power: 2 W
- Max Torque: 2 Nm
- Max Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 100°C
- Ambient Temperature Range: -20°C to 40°C
- Enclosure Rating: IP67
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Not Full
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
