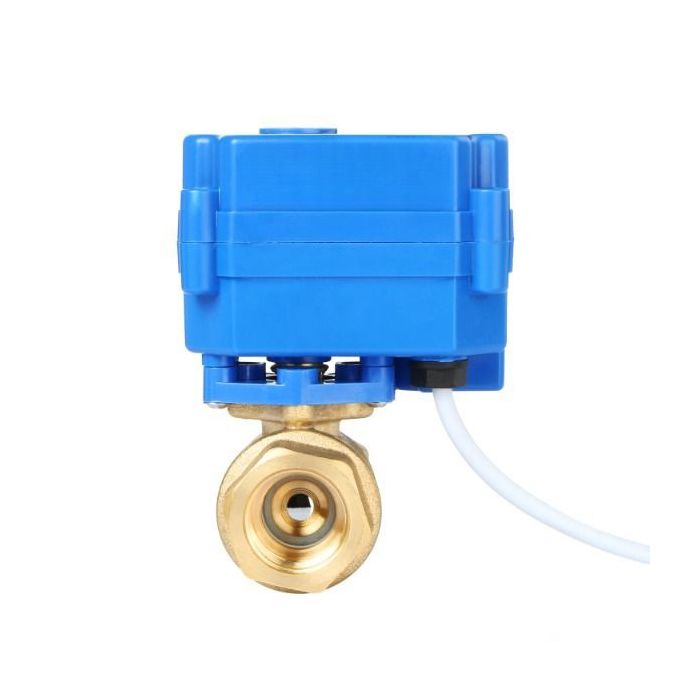

Motorized Ball Valve- 1/2" Brass Electrical Ball Valve with Full Port, 9-24 V DC, 5 Wire Setup
Motorized ball valves play a crucial role in various applications. This particular model boasts an impressive opening and closing time of 6-8 seconds, and it retains its new position with minimal energy consumption. This sets motorized ball valves apart from many solenoid valves, as solenoid valves typically require continuous energy when in a new position, whereas motorized ball valves only consume energy during the transition from open to close, or vice versa. The 5-wire configuration of this model is particularly beneficial in situations where visibility of the valve's status is essential. Easy-to-follow wiring diagrams and instructions guide you through the process of connecting the valve to power and linking the status indicator wires. The 5-wire model is a perfect match for home automation systems.
Product Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 5 Wire Setup
