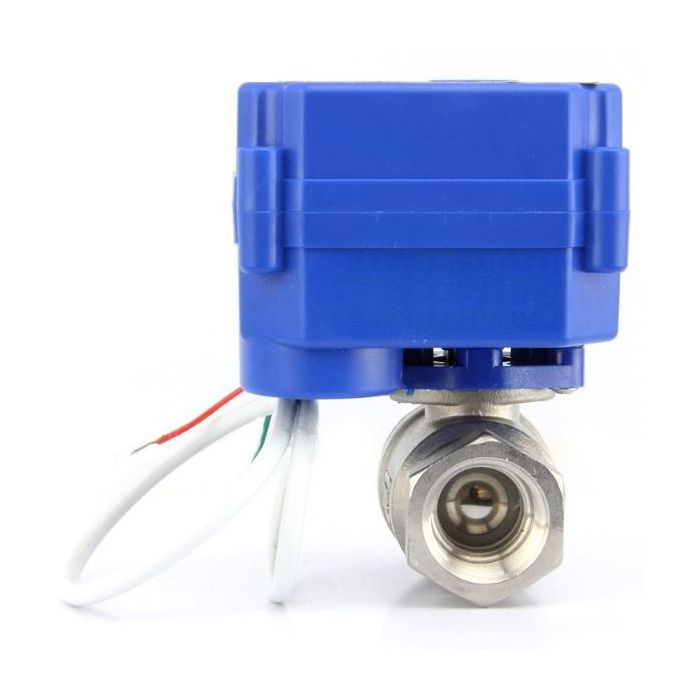

Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 85-265 V AC, 2 Wire Auto Return
$46.99
In stock
SKU
JFMSV00053
Motorized ball valves are a crucial component in various applications. This stainless steel 1/2” model operates quickly, opening and closing in 6-8 seconds, and holds its position without any energy consumption. Unlike many solenoid valves, motorized ball valves do not require continuous energy while in a stationary position. They only consume energy during transitions from open to close or vice versa. These valves are commonly integrated into home automation systems, serving as emergency backups for water systems, and are popular among home brewers nationwide. Our motorized ball valves offer top-notch quality construction at an affordable price for individual buyers.
Specifications:
- Valve Material: SS304
- Ball Seat: PTFE
- Seal: EPDM
- Operating Time: 3-5 Seconds
- Working Voltage: 85-265 V AC
- Max Power: 5 W
- Max Torque: 2 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 100°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
