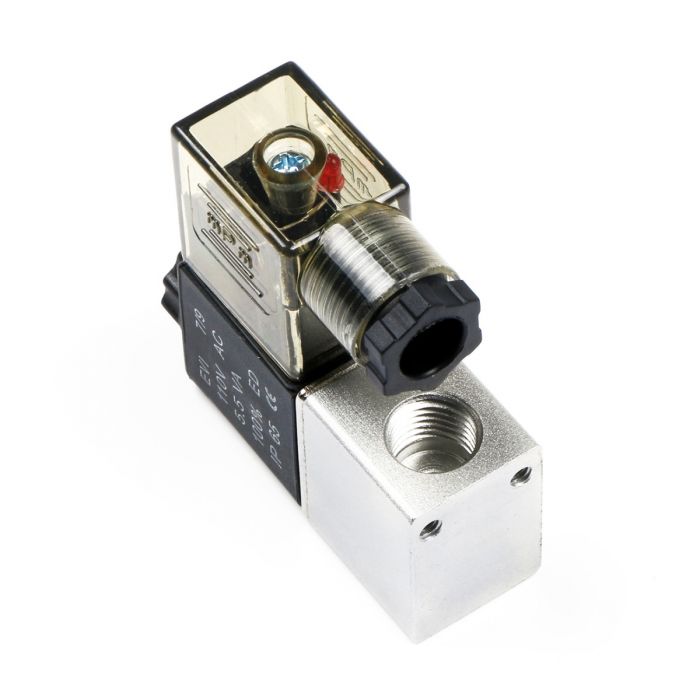

Pneumatic Electric Solenoid Valve

The 1/4" NPT 2 Way 2 Position Pneumatic Electric Solenoid Valve is a high-quality pneumatic valve that offers precision control over air flow. With 2 ports and 2 flow positions, this valve can easily block or open air flow as needed. It is designed to operate with AC 110 V power supply and is crafted from durable aluminum alloy, ensuring longevity.

A pneumatic valve serves as a crucial component for directing air to various pneumatic devices, including actuators. It acts as a bridge between electronic controllers and pneumatic systems, enabling precise control over position, flow rate, pressure, and temperature. Pneumatic valves find applications in diverse industries.

For instance, in the aviation sector, pneumatic valves are used to regulate the pressure and flow of hot engine air for windshield anti-icing and rain removal. Similarly, in the food and beverage industry, these valves play a vital role in production, dispensing, and preservation processes.

Our pneumatic valves offer exceptional reliability, energy efficiency, and extended lifespan. Featuring prewired connections, they ensure easy installation, maintenance, and control. Here are the specifications for this valve:

• Valve Type: 2 Position 2 Way
• Thread Type: NPT
• Operation/Property: Normally Closed
• Material: Aluminum Alloy
• Size: 1/4"
• Voltage: AC 110 V
• Applicable Media: Filtered Air
• Power Rating (W): 4.5
• Aperture (mm): 2.5
• Flow Value (Cv): 0.23
• Insulation & Protection: Class F; IP 65
• Working Pressure: 0 ~ 0.8 Mpa
• Max. Pressure Resistance: 1.2 Mpa
• Direct Operated/Pilot Operated: Direct Acting
• Operation Temperature: -5°C ~ 60°C
• Voltage: ±10%
