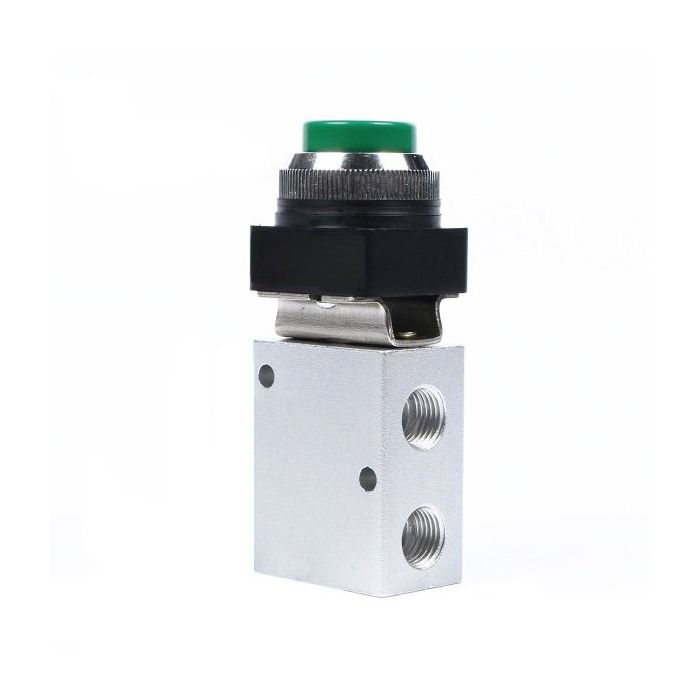

1/4" NPT Green Push Button 3 Way, 2 Position Pneumatic Control Mechanical Valve

$14.99
In stock
SKU
JFPSV00037

The PSV00037 1/4" NPT Green Push Button 3/2 Pneumatic Control Mechanical Valve is a 3-Way, 2-Position hand operated manual controlled valve used for controlling pilots or diaphragms of larger valves, small cylinders, or any pressure system that is alternatively pressurized and exhausted. It controls the flow of pressurized air and can be used as normally closed or normally open. There is a ¼” NPT Port and an inlet, outlet, and exhaust port of 13mm. It has a 25mm in diameter green spring back button which monetarily actuates the valve and is flush with surface to prevent accidental operation. The body is made of aluminum alloy, the button is plastic, and the seal is made of NBR. This type of valve is applicable in high pressure systems in various industries including manufacturing, automotive, aerospace, defense, oil & gas, chemical, refining, mining, power generation, cryogenics and research. Typical applications are for component testing, hydro-pneumatic systems, pneumatic actuation, process control, gas recovery, high pressure cylinder filling, propellant, gas inerting, nitrogen generation, high purity instrument air, etc. Being a high-quality product, this air control valve offers reliability and long life and installation, maintenance, and control are made simple. We offer 1 year warranty.

Specifications:

  • Valve Type: 3 Way 2 Position
  • Control Type: Manual
  • Actuator Type: Flat Momentary Green Spring Back Push Button
  • Material: Aluminum Alloy/ Plastic
  • Seal: NBR
  • Power: Pneumatic
  • Port Size: 1/4”
  • Air Inlet/Outlet/Exhaust: 13mm
  • Operating Pressure: 0 – 8 Bar
  • Working Temperature: 0℃ - 70℃
  • Working Medium: Air
  • Weight: 6.2 oz.
`
