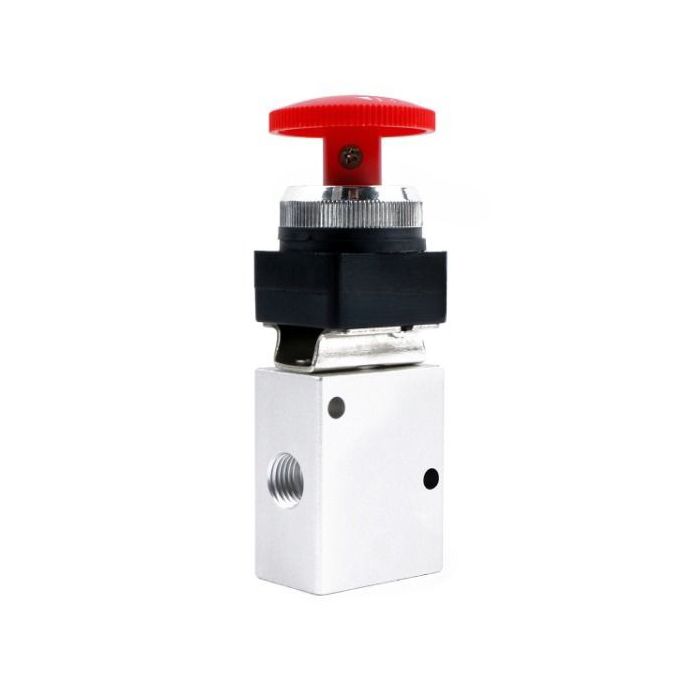

1/4" NPT Red Latching Emergency Mushroom Style Push Button 3 Way, 2 Position Pneumatic Control Mechanical Valve

$14.99
In stock
SKU
JFPSV00038

The 1/4" NPT Red Latching Emergency Mushroom Style Push Button Pneumatic Control Mechanical Valve is a 3-Way, 2-Position hand-operated manual controlled valve used for controlling pilots or diaphragms of larger valves, small cylinders, or any pressure system that is alternatively pressurized and exhausted. It controls the flow of pressurized air and can be used as normally closed or normally open. A red latching emergency mushroom style push button actuates the valve open or closed. The body is made of aluminum alloy, the button is plastic, and the seal is made of NBR. This type of valve is applicable in high-pressure systems in various industries including manufacturing, automotive, aerospace, defense, oil & gas, chemical, refining, mining, power generation, cryogenics, and research. Typical applications are for component testing, hydro-pneumatic systems, pneumatic actuation, process control, gas recovery, high-pressure cylinder filling, propellant, gas inerting, nitrogen generation, high purity instrument air, etc. This air control valve offers reliability and a long life span. Installation, maintenance, and control are made simple. The product comes with a 1-year warranty.

Specifications

  • Valve Type: 3 Way 2 Position
  • Control Type: Manual
  • Actuator Type: Red Latching Emergency Mushroom Style Push Button
  • Material: Aluminum Alloy/ Plastic
  • Seal: NBR
  • Power: Pneumatic
  • Port Size: 1/4”
  • Air Inlet/Outlet/Exhaust: 13mm
  • Operating Pressure: 0 – 8 Bar
  • Working Temperature: 0℃ - 70℃
  • Working Medium: Air
  • Weight: 6.2 oz.
