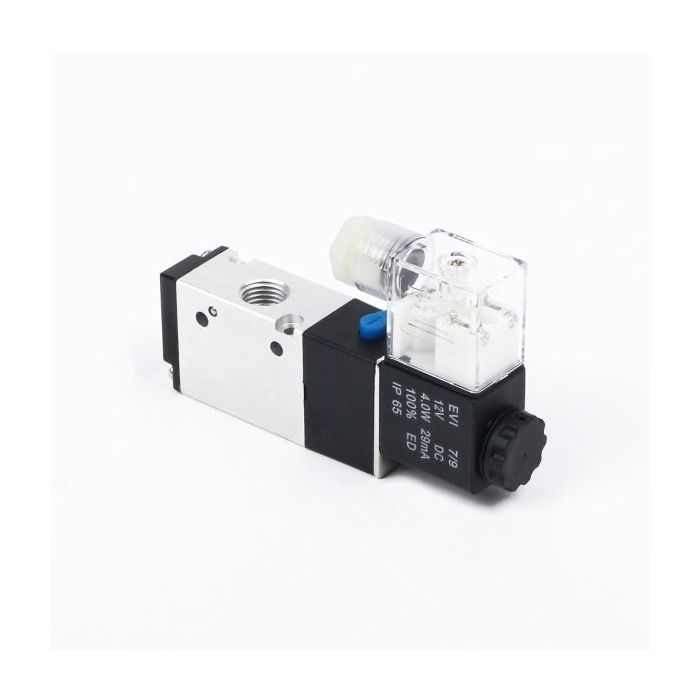

1/4" 3 Way 2 Position Pneumatic Electric Solenoid Valve DC 12 V

$17.99
In stock
SKU
JFPSV00032

The 1/4" NPT 3 way 2 Position Pneumatic Electric Solenoid Valve is a versatile switch designed to direct air to various pneumatic devices, such as actuators. It serves as a critical link between electronic controllers and pneumatic systems, enabling precise control over position, flow, pressure, and temperature.

This valve features a 3/2 configuration with three port connections and two flow positions. In its default state, one port remains open while the other is closed. Upon energizing the coil, the valve reverses its mode, allowing compressed air to flow between ports or to block one port while exhausting through another.

Constructed from durable aluminum alloy with a 1/4" aperture, this pneumatic valve finds applications across diverse industries. For instance, it is used in aircraft to regulate engine air flow for anti-icing and rain removal, as well as in food and beverage manufacturing for various processing tasks.

Known for reliability and longevity, this type of pneumatic valve delivers efficient performance while consuming low power. The prewired connections simplify installation, maintenance, and control processes.

Product Details

  • Valve Type: 2 Position 3 Way
  • Thread Type: NPT
  • Operation/Property: Normally Closed
  • Material: Aluminum Alloy
  • Size: 1/4"
  • Voltage: DC 12 V
  • Applicable Media: Filtered Air
  • Power Rating (W): 4
  • Aperture (mm): 16
  • Flow Value (Cv): 0.89
  • Insulation & Protection: Class F; IP 65
  • Working Pressure: 0.15 ~ 0.8 Mpa
  • Direct Operated/Pilot Operated: Pilot Operated
  • Operation Temperature: -5°C - 50°C
  • Voltage Tolerance: ±10%
