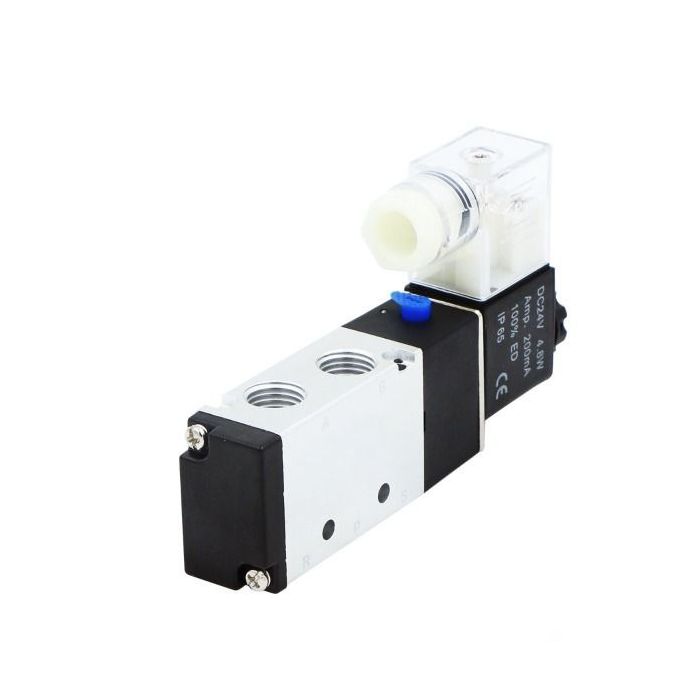

1/4" 5 Way 2 Position Pneumatic Electric Solenoid Valve DC 24 V

This is a 1/4" 5 way 2 Position Pneumatic Electric Solenoid Valve. It is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems. It allows pneumatic control of position, flow, pressure and temperature. This particular valve is a 5/2 valve which means it has 5 ports; 2 exhaust ports through which air is regulated as it flows out, 2 power ports that power the system, 1 supply port for the inlet of air pressure, and 2 flow positions. This valve is made with an aluminum alloy and has an aperture of 1/4”. Pneumatic valves can be found in a wide array of industries. The transportation industry has many uses for them; motorcycle & ATV air ride suspension systems, door opening systems on buses, and garbage truck lift mechanisms just to name a few. They are also found in air lift devices like forklifts. These pneumatic valves are reliable, low power consuming, and have long life. They have prewired connections that makes installation, maintenance, and control easy.

Specifications:

• Model: PSV00011
• Valve Type: 2 Position 5 Way
• Thread Type: NPT
• Operation/Property: Normally Closed
• Material: Aluminum Alloy
• Size: 1/4"
• Voltage: DC 24 V
• Applicable Media: Filtered Air
• Power Rating (W): 4.8
• Aperture (mm): 16
• Flow Value (Cv): 0.89
• Insulation & Protection: Class F; IP 65
• Working Pressure: 0.15 ~ 0.8 Mpa
• Max. Pressure Resistance: 1.2 Mpa
• Direct Operated/Pilot Operated: Pilot Operation
• Temperature: 5℃ ~ 50℃
• Voltage: ±10%
