1/4" 5 way 2 Position Pneumatic Solenoid Valve, DC 12 V - High Quality Product
Pneumatic types of valves can be found in a wide range of industries. They are used in Pneumatic Artificial Muscles (PAM) for robotics and automation. Manufacturing companies that use conveyors belts use pneumatic valves in their conveyor belt systems. Food and beverage manufacturers use them to make, dispense or preserve food and beverage products.

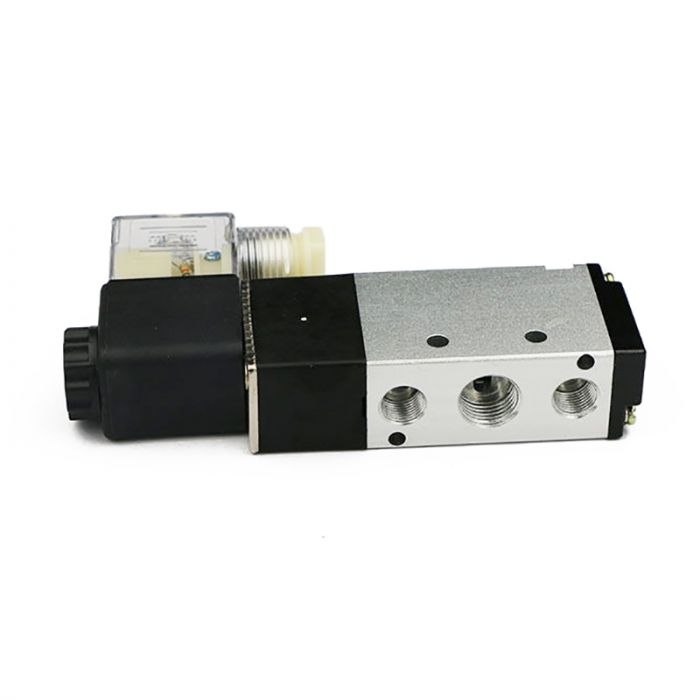

This is a 1/4" NPT 5 way 2 Position Pneumatic Electric Solenoid Valve. It is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems. This valve allows pneumatic control of position, flow, pressure and temperature.
This valve is a 5/2 valve which means it has 5 ports; 2 exhaust ports through which air is regulated as it flows out, 2 power ports that power the system, 1 supply port for the inlet of air pressure, and 2 flow positions. This valve is made with an aluminum alloy and has an aperture of 1/4”.
These pneumatic valves offer reliability, low power consumption, and have a long life. They have prewired connections that make installation, maintenance, and control simple.
Specifications:
- Valve Type: 2 Position 5 Way
- Thread Type: NPT
- Operation/Property: Normally Closed
- Material: Aluminum Alloy
- Size: A=B=P 1/4" (outlet / inlet) R=S 1/8" (exhaust port)
- Voltage: DC 12 V
- Applicable Media: Filtered Air
- Power Rating (W): 4
- Aperture (mm): 16
- Flow Value (Cv): 0.89
- Insulation & Protection: Class F; IP 65
- Working Pressure: 0.15 ~ 0.8 Mpa
- Max. Pressure Resistance: 1.2 Mpa
- Direct Operated/Pilot Operated: Pilot Operated
- Operation Temperature: -5°C - 50°C
- Voltage: ±10%
