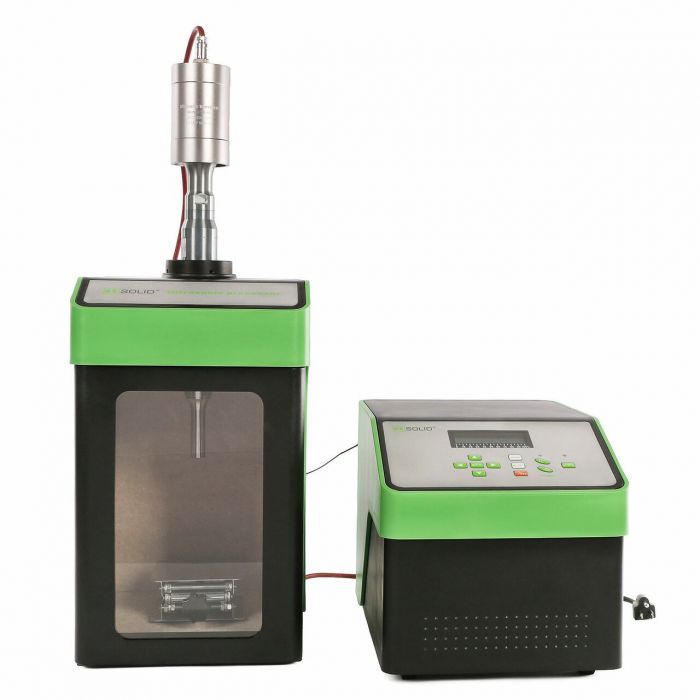

150W Ultrasonic Homogenizer with 2 to 100ml Capacity for Cell Disruption

Ultrasonic homogenizer designed for laboratory use to facilitate mixing, emulsifying, homogenizing, disrupting cells, and reducing particle size in samples. Features an LCD digital display, total working time of up to 99 hours, variable output for pulsation, temperature indicator to prevent overheating, and easy-to-use programming for optimal efficiency. It also includes automatic amplitude control, a sound abating chamber to reduce cavitation noise, and a duty ratio of 0-100% based on specific needs.

Technical Parameters

• Sample Capacity:
  • 500ul-10ml with Φ 2 mm probe, suitable for EP tube, microcentrifuge tube, or small tube
  • 500ul-50ml with Φ 3 mm probe
  • 2ml-100ml with Φ 6 mm probe, suitable for small tubes or beakers
  • 5ml-200ml with Φ 8 mm probe, suitable for small tubes
  • 5ml-200ml with Φ 10mm probe, suitable for beakers or chosen container based on sample capacity
  • 10ml-300ml with Φ 13 mm probe
  • 20ml-500ml with Φ 16 mm probe
  • 20ml-500ml with Φ 18 mm probe
  • 50ml-2000ml with Φ 20 mm probe
  • 50ml-3000ml with Φ 25 mm or Φ 30 mm probe

Specifications

• Model: USS-HLUH00012
• Frequency Range: 20KHz
• Output Power: 150 W
• Total Working Timer: 1 sec to 99 hours
• Ultrasonic Output Impulse: 1 sec to 99 min on timer
• Duty Ratio: 0-100%
• Probe Diameter: 6 mm
• Sample Processing Volume: 2-100 ml
• Packing Size: 20” x 14” x 30”
• Gross Weight: 12 kg
• Power Supply: AC 110V, 60 Hz

Additional Information

• Output Power Variants Available: 300 W, 450 W, 600 W, 1200 W, 1800 W
• Probe Diameter Options: 8 mm, 13 mm, 16 mm, 20 mm, 25 mm
• Capacity Ranges: 5-200 ml, 10-300 ml, 1-500 ml, 50-2000 ml, 50-3000 ml
