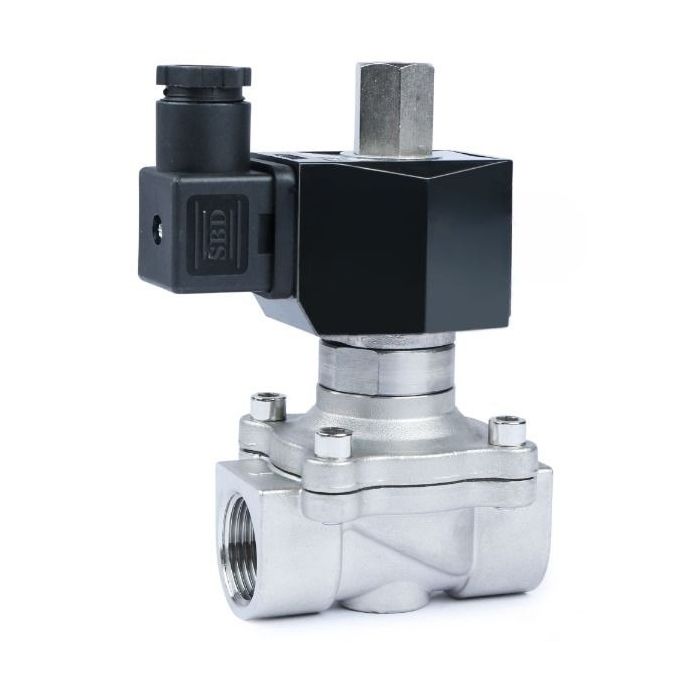

Industrial-Grade Stainless Steel Solenoid Valve

This stainless steel solenoid valve is crafted to withstand industrial conditions, offering exceptional corrosion resistance and ease of welding. It is well-suited for high-temperature applications, making it a reliable choice for a variety of projects.

Compatible with diesel fuel, natural gas, air, and even suitable for use with drinking water or other water-based projects, this solenoid valve proves to be a versatile tool. Its swift response time ensures quick opening or closing in less than a second when activated, enabling instant flow control upon operation.

Engineered for durability, our experts estimate a life cycle exceeding a million cycles under proper maintenance and operating conditions.

Key Features:

• Utilizes a magnetic field to move the plunger and close the orifice in its default state, halting fluid or gas flow.
• Comes equipped with a Viton gasket, known for its chemical inertness and compatibility with gasoline, kerosene, and other solvents.
• Well-suited for water projects, chemical processing, power generation, and healthcare industries.
• Ideal for applications such as brewing systems and automatic irrigation due to its precise fluid control.

Specifications:

• Size: 3/4"
• Body Material: Stainless Steel
• Flow Aperture: 20 mm
• Gasket / Diaphragm / Seal: Viton
• Rated voltage: AC 110 V, ± 10%
• Power rating: 24 VA
• Operation Type: Semi-direct lift valve
• Operation Mode: Normally Open
• Operational pressure range:
  • 0 to 101 PSI / 0-0.7 Mpa (Air, Water)
  • 0 to 72 PSI / 0-0.5 Mpa (Oil)
• Flow capacity: 7.6 GPM of water at 60℉ with a pressure drop of 1 PSI
• Operational temperature: 14 - 248 degrees Fahrenheit
