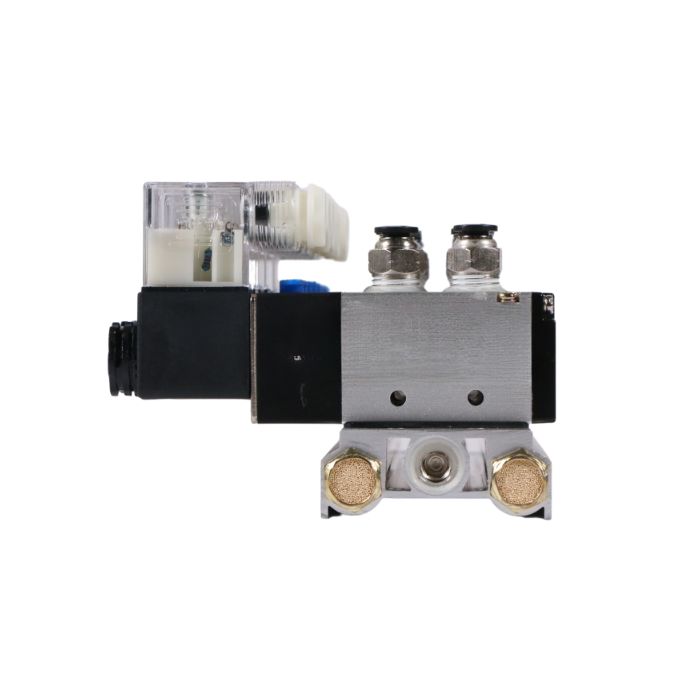

4V210-08 2 Position 5 Way 8 Pneumatic Solenoid Valves Manifold Base, DC 24V
$69.95
In stock
SKU
JFPSV01008
This is a 4V210-08 8 Pneumatic Solenoid Valves 2 Position 5 Way Manifold Base. This product combines 8 pneumatic solenoid valves with a manifold base, serving as a switch to direct air to various pneumatic devices. It enables small signals to control larger devices, acting as a crucial interface between electronic controllers and pneumatic systems. Crafted from aluminum alloy with a 1/4” aperture, these valves facilitate pneumatic control of position, flow, pressure, and temperature. Widely used in industries such as robotics, automation, and manufacturing, they offer reliability, energy efficiency, and long lifespan. Featuring prewired connections, installation, maintenance, and control of these valves are simplified.
Specifications:
- Model: 4V210-08
- Valve Type: 2 position 5 way, 8 valves
- Voltage: DC 24V
- Base Diameter: 8mm
- Valve Diameter: 6mm
- Thread Type: NPT
- Operation/ Property: Normally Closed
- Material: Aluminum Alloy
- Size: 1/4"
- Applicable Media: Filtered Air
- Insulation & Protection: Class F; IP 65
- Working Pressure: 0.15 ~ 0.8 Mpa
- Max. Pressure Resistance: 1.2 Mpa
- Direct Operated/ Pilot Operated: Pilot Acting
- Operation Temperature: -5℃ - 50℃
