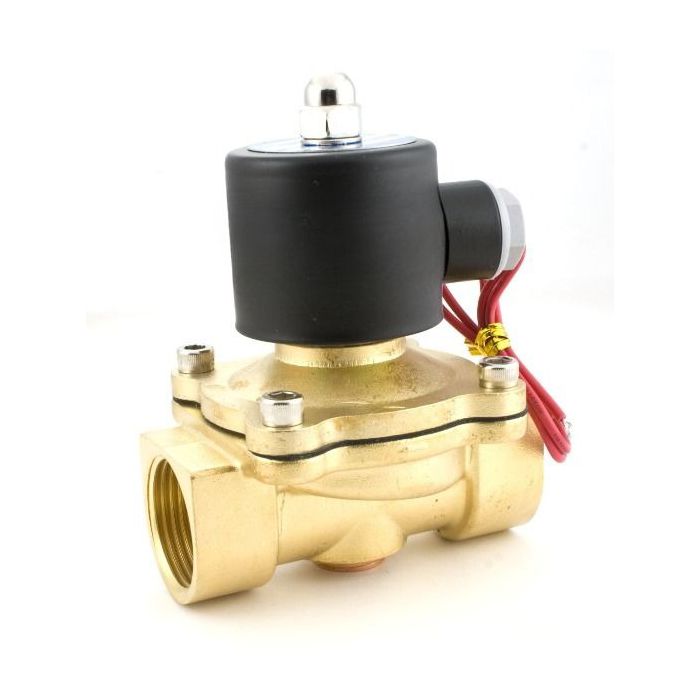

Brass Electric Solenoid Valve, 1-1/4" 110V AC, Normally Closed, VITON Seal

$79.95
In stock
SKU
JFSV00114

An electric solenoid valve with normally closed (N/C) operation, constructed with a high-quality brass body and featuring two-way inlet and outlet ports with 1-1/4" female threaded connections. The valve comes with a heat and oil resistant Viton gasket, making it suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.

This solenoid valve has a IP65 rating, offering resistance to water spray. It is recommended to enclose the valve in protective housing if permanently installed outdoors, as it is not meant for underwater use. Customers often choose this valve for DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation and reverse osmosis systems, or for controlling propane gas flow.

Specifications:

  • Pipe Size: 1-1/4" (1.25")
  • Flow Aperture: 35 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: Viton
  • Operation Type: Semi-Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 110V ± 10%
  • Power rating: 27.5 VA
  • Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
  • Operational pressure range:
    • Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
    • Oil: 0-5 Bar (0 to 72 PSI)
  • Flow capacity: 35 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 35 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

Warning: This solenoid valve is not designed for continuous operation and should not be used with a 100% duty cycle. The coil can reach a maximum temperature of about 176°F (80℃) under normal operating conditions. Continuous energization for more than 8 hours may cause the coil to burn.

Chemical Warning: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Please refer to the instruction manual for detailed usage guidelines.
