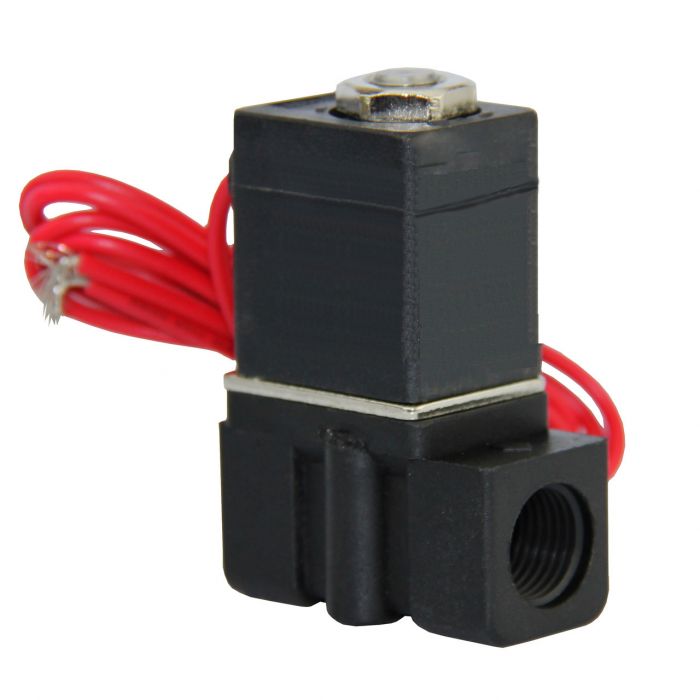

Electric Solenoid Valve- 1/4" 110V AC Plastic(Nylon) Body Normally Closed, NBR SEAL
Our electric solenoid valve features a durable nylon engineering plastic body, two-way inlet and outlet ports with 1/8" female threaded connections, and heat and oil resistant NBR seals. It is suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids (<20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. With an IP65 rating, these valves can withstand water spray, but for outdoor installations, it is advisable to enclose them in protective housing. Please note these valves are not suitable for underwater use.
Customers choose this general purpose valve for various uses like DIY projects, moderate temperature applications, water exchange in aquariums, air horns, or bleeding moisture from air tanks.
Specifications
- Pipe Size: 1/4"
- Flow Aperture: 2.5 mm
- Body Material: Nylon engineering plastic
- Gasket / Diaphragm / Seal: NBR
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 4 VA
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 0.23 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow value: 0.23 Cv
- Temperature, Minimum: 23°F (-5°C)
- Temperature Maximum: 176°F (80°C)
Overheating Warning: This valve is not designed for continuous operation (not a 100% duty cycle). While energized, under normal operating conditions, the solenoid valve will become hot. The coil will reach a maximum temperature of approximately 176°F (80°C), which complies with the national standard JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
