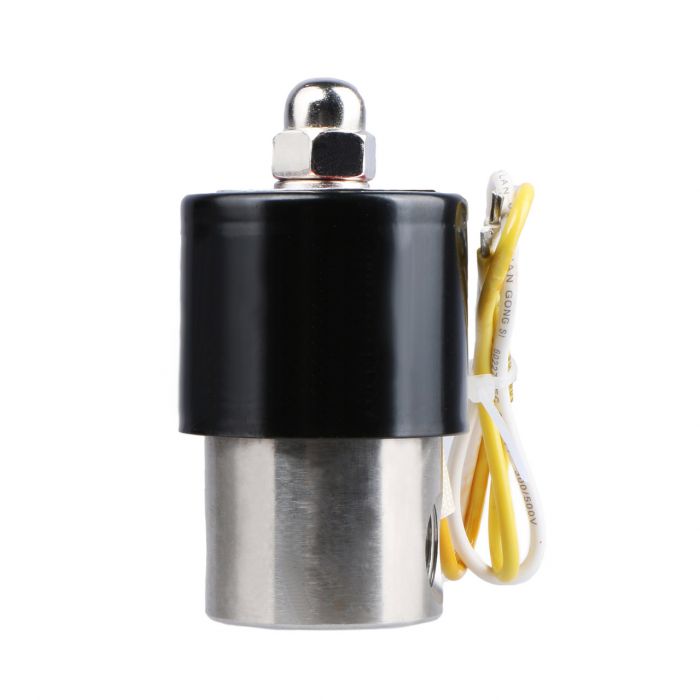

Electric Solenoid Valve- 1/4" 110V AC Stainless Steel Body Normally Closed with VITON Seal
Electric solenoid valve featuring a durable stainless steel body, two-way inlet and outlet ports with 1/4" female threaded connections, and heat and oil resistant Viton seals. Suitable for hot or cold water, gas, air, low viscosity fluids, oils, gasoline, kerosene, or diesel fuel. IP65 rated for water spray resistance, but enclose in protective housing if permanently installed outdoors. Not for underwater use.
Ideal for do-it-yourself projects, moderate temperature applications, water exchange for aquariums, air horns, or bleeding moisture from air tanks.
Specifications:
- Pipe Size: 1/4"
- Flow Aperture: 2.5 mm
- Body Material: Stainless Steel (Also available with brass body)
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power Rating: 16 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational Pressure Range:
- Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 0.23 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 0.23 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). Solenoid valve will get hot under normal operating conditions, with the coil reaching a maximum temperature of about 176°F (80°C). If energized continuously for over 8 hours, the coil may burn.
`
